mlr3fselect - Runtime and Memory Benchmarks

Scope

This report analyzes the runtime and memory usage of the mlr3fselect package across different versions. The benchmarks include the fselect() and fselect_nested() functions both in sequential and parallel mode. The benchmarks vary the training time of the models and the size of the dataset.

Given the extensive package ecosystem of mlr3, performance bottlenecks can occur at multiple stages. This report aims to help users determine whether the runtime of their workflows falls within expected ranges. If significant runtime or memory anomalies are observed, users are encouraged to report them by opening a GitHub issue.

Benchmarks are conducted on a high-performance cluster optimized for multi-core performance rather than single-core speed. Consequently, runtimes may be faster on a local machine.

Summary of Latest mlr3fselect Version

The benchmarks are comprehensive; therefore, we present a summary of the results for the latest mlr3fselect version. We measure the runtime and memory usage of a random search with 1000 resampling iterations on the spam dataset with 1000 and 10,000 instances. The nested resampling is conducted with 10 outer resampling iterations and uses the same random search for the inner resampling loop. The overhead introduced by fselect() and fselect_nested() should always be considered relative to the training time of the models. For models with longer training times, such as 1 second, the overhead is minimal. For models with a training time of 100 ms, the overhead is approximately 20%. For models with a training time of 10 ms, the overhead approximately doubles or triples the runtime. In cases where the training time is only 1 ms, the overhead results in the runtime being 16 to 20 times larger than the actual model training time. The memory usage of fselect() and fselect_nested() is between 450 MB and 550 MB. Running an empty R session consumes 131 MB of memory.

mlr3fselect utilizes the future package to enable parallelization over resampling iterations. However, running fselect() and fselect_nested() in parallel introduces overhead due to the initiation of worker processes. Therefore, we compare the runtime of parallel execution with that of sequential execution. For models with a 1-second, 100 ms, and 10 ms training time, using fselect() in parallel reduces runtime. For models 1 ms training times, sequential execution becomes slower than parallel execution. Memory usage increases significantly with the number of cores since each core initiates a separate R session. Utilizing 10 cores results in a total memory usage of around 1.8 GB. The fselect_nested() functions parallelize over the outer resampling loop. For all training times, the parallel version is faster than the sequential version. The memory usage is around 3.3 GB.

Feature Selection

The runtime and memory usage of the fselect() function is measured for different mlr3fselect versions. A random search is used with a batch size of 1000. The models are trained for different amounts of time (1 ms, 10 ms, 100 ms, and 1000 ms) on the spam dataset with 1000 and 10,000 instances.

task = tsk("spam")

learner = lrn("classif.sleep",
  sleep_train = model_time / 2,
  sleep_predict = model_time / 2)

fselect(
  fselector = fs("random_search", batch_size = 1000),
  task = task,
  learner = learner,
  resampling = rsmp("holdout"),
  measure = msr("classif.ce"),
  terminator = trm("evals", n_evals = 1000),
  store_benchmark_result = FALSE,
  store_models = FALSE
)

Model Time 1000 ms

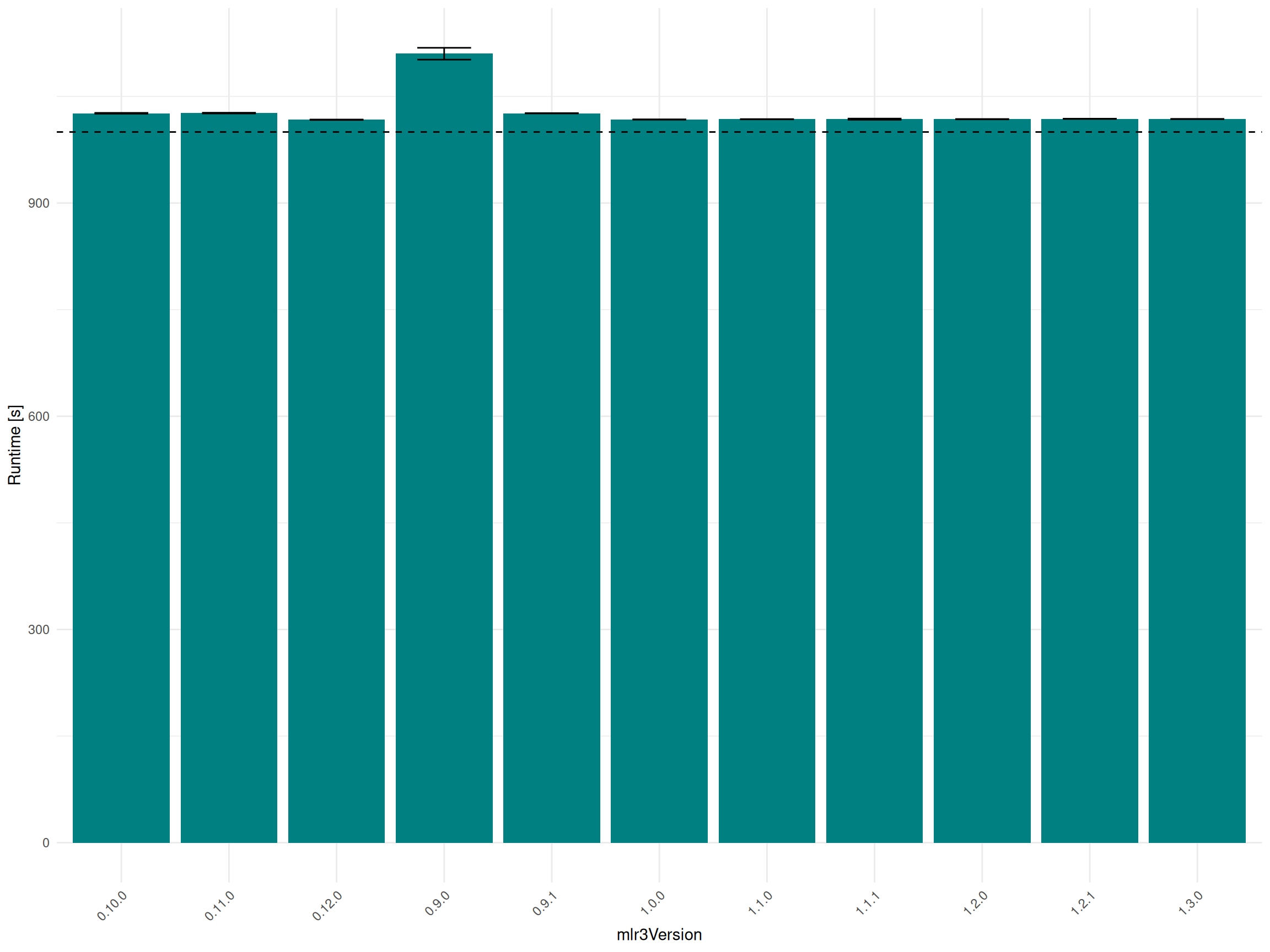

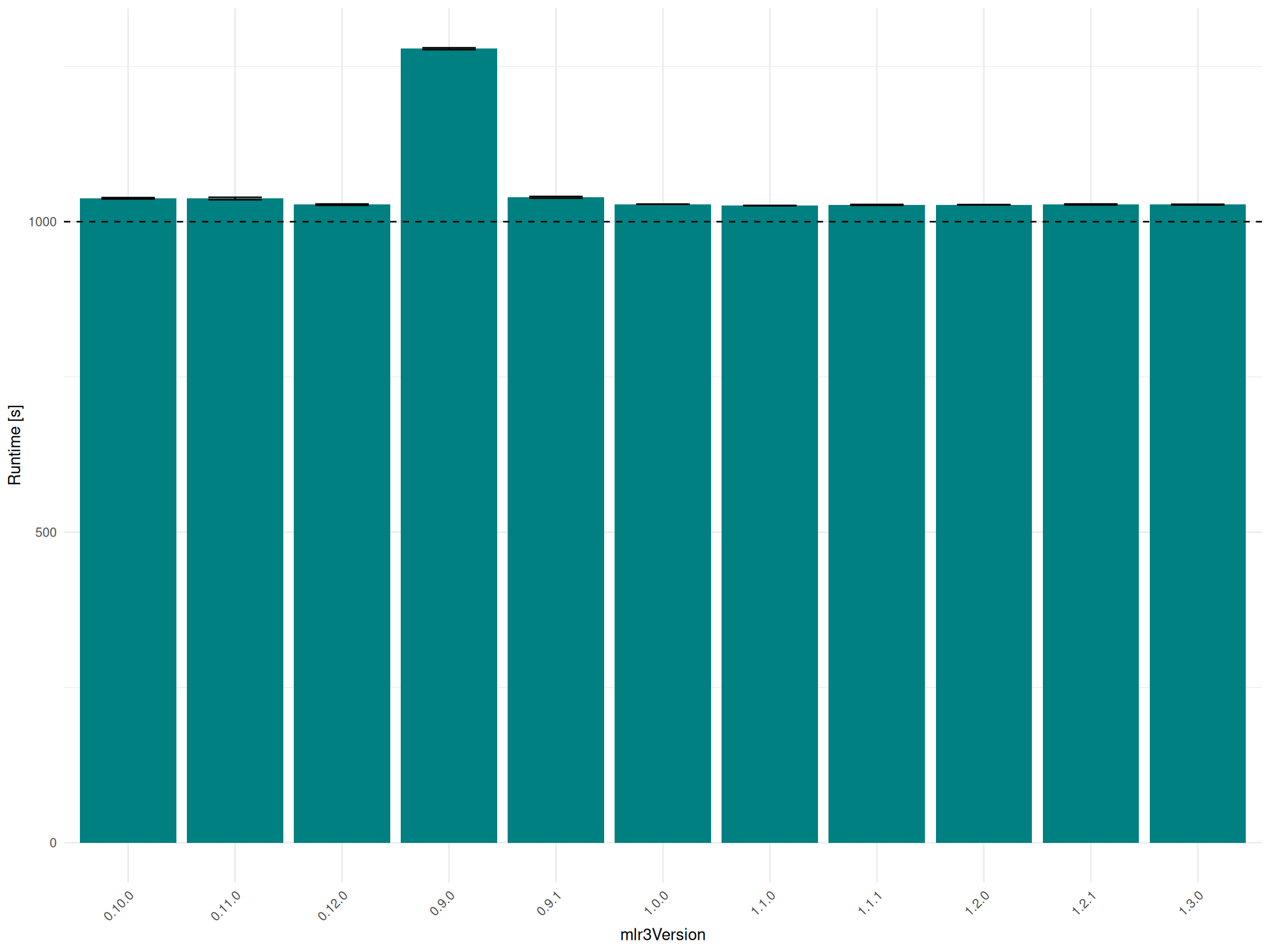

Median runtime of fselect() with models trained for 1000 ms depending on the mlr3fselect version. The dashed line indicates the total training time of the models. Error bars represent the median absolute deviation of the runtime.
Runtime and memory usage of fselect() with models trained for 1000 ms depending on the mlr3fselect version. The K factor shows how much longer the runtime is than the model training. A red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.
mlr3fselect Version bbotk Version mlr3 Version paradox Version Model Time [ms] Total Model Time [s] Median Runtime [s] Median Runtime 10,000 [s] K Median Memory [MB] Median Memory 10,000 [s]
0.10.0 0.7.2 0.14.1 0.11.0 1000 1000 1,000 1,000 1.0 540 543
0.11.0 0.7.2 0.14.1 0.11.0 1000 1000 1,000 1,000 1.0 540 543
0.12.0 0.8.0 0.19.0 0.11.1 1000 1000 1,000 1,000 1.0 440 512
0.9.0 0.7.2 0.14.1 0.11.0 1000 1000 1,100 1,100 1.1 966 1,016
0.9.1 0.7.2 0.14.1 0.11.0 1000 1000 1,000 1,000 1.0 547 515
1.0.0 1.0.0 0.20.0 1.0.1 1000 1000 1,000 1,000 1.0 510 422
1.1.0 1.1.0 0.20.2 1.0.1 1000 1000 1,000 1,000 1.0 442 439
1.1.1 1.1.1 0.21.0 1.0.1 1000 1000 1,000 1,000 1.0 444 432
1.2.0 1.2.0 0.21.1 1.0.1 1000 1000 1,000 1,000 1.0 520 545
1.2.1 1.3.0 0.21.1 1.0.1 1000 1000 1,000 1,000 1.0 521 545
1.3.0 1.5.0 0.21.1 1.0.1 1000 1000 1,000 1,000 1.0 446 538

Model Time 100 ms

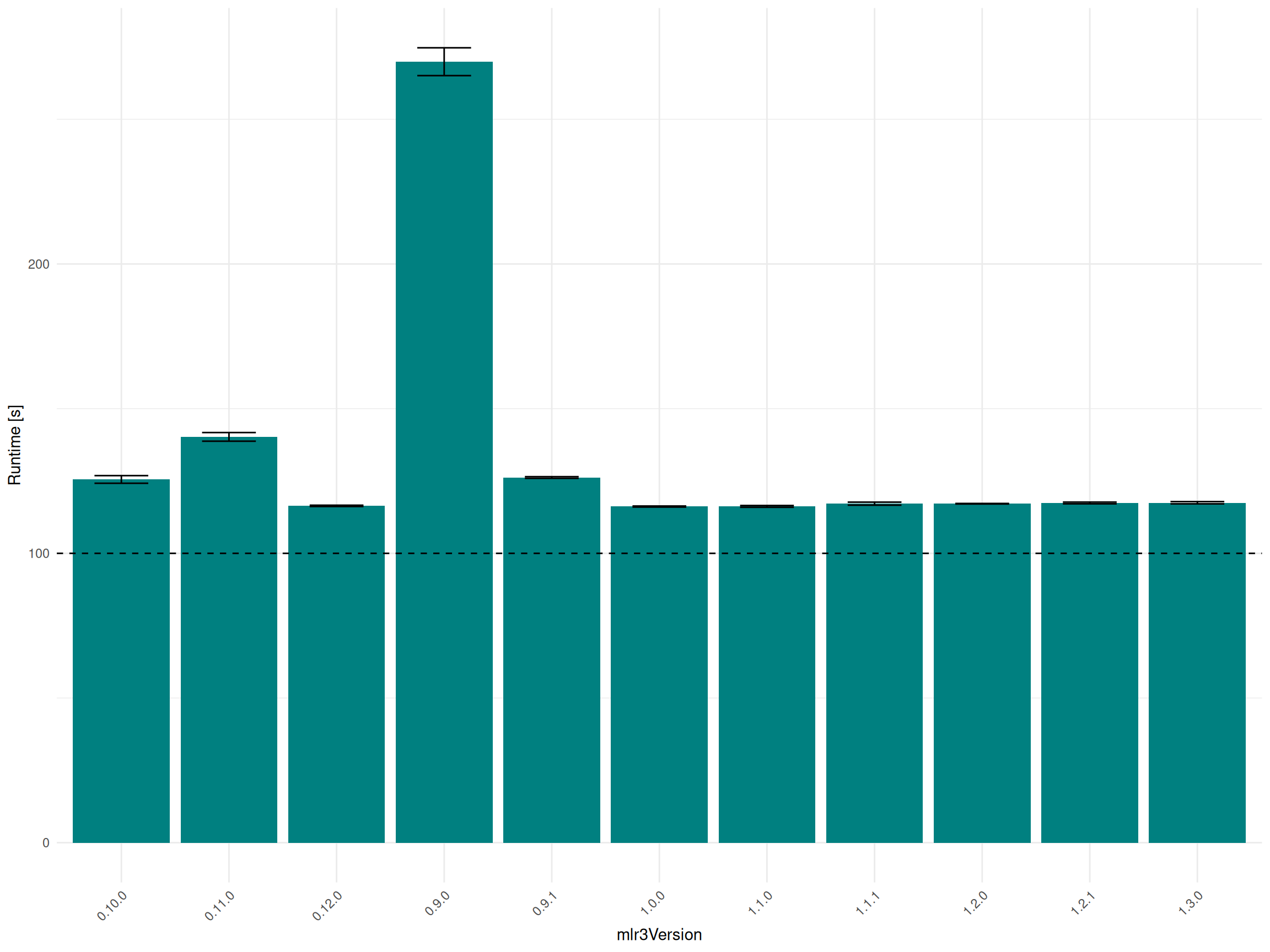

Median runtime of fselect() with models trained for 100 ms depending on the mlr3fselect version. The dashed line indicates the total training time of the models. Error bars represent the median absolute deviation of the runtime.
Runtime and memory usage of fselect() with models trained for 100 ms depending on the mlr3fselect version. The K factor shows how much longer the runtime is than the model training. A red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.
mlr3fselect Version bbotk Version mlr3 Version paradox Version Model Time [ms] Total Model Time [s] Median Runtime [s] Median Runtime 10,000 [s] K Median Memory [MB] Median Memory 10,000 [s]
0.10.0 0.7.2 0.14.1 0.11.0 100 100 130 130 1.3 540 543
0.11.0 0.7.2 0.14.1 0.11.0 100 100 140 130 1.4 540 543
0.12.0 0.8.0 0.19.0 0.11.1 100 100 120 120 1.2 440 512
0.9.0 0.7.2 0.14.1 0.11.0 100 100 270 270 2.7 966 1,016
0.9.1 0.7.2 0.14.1 0.11.0 100 100 130 130 1.3 547 515
1.0.0 1.0.0 0.20.0 1.0.1 100 100 120 120 1.2 510 422
1.1.0 1.1.0 0.20.2 1.0.1 100 100 120 120 1.2 442 439
1.1.1 1.1.1 0.21.0 1.0.1 100 100 120 120 1.2 444 432
1.2.0 1.2.0 0.21.1 1.0.1 100 100 120 120 1.2 520 545
1.2.1 1.3.0 0.21.1 1.0.1 100 100 120 120 1.2 521 545
1.3.0 1.5.0 0.21.1 1.0.1 100 100 120 120 1.2 446 538

Model Time 10 ms

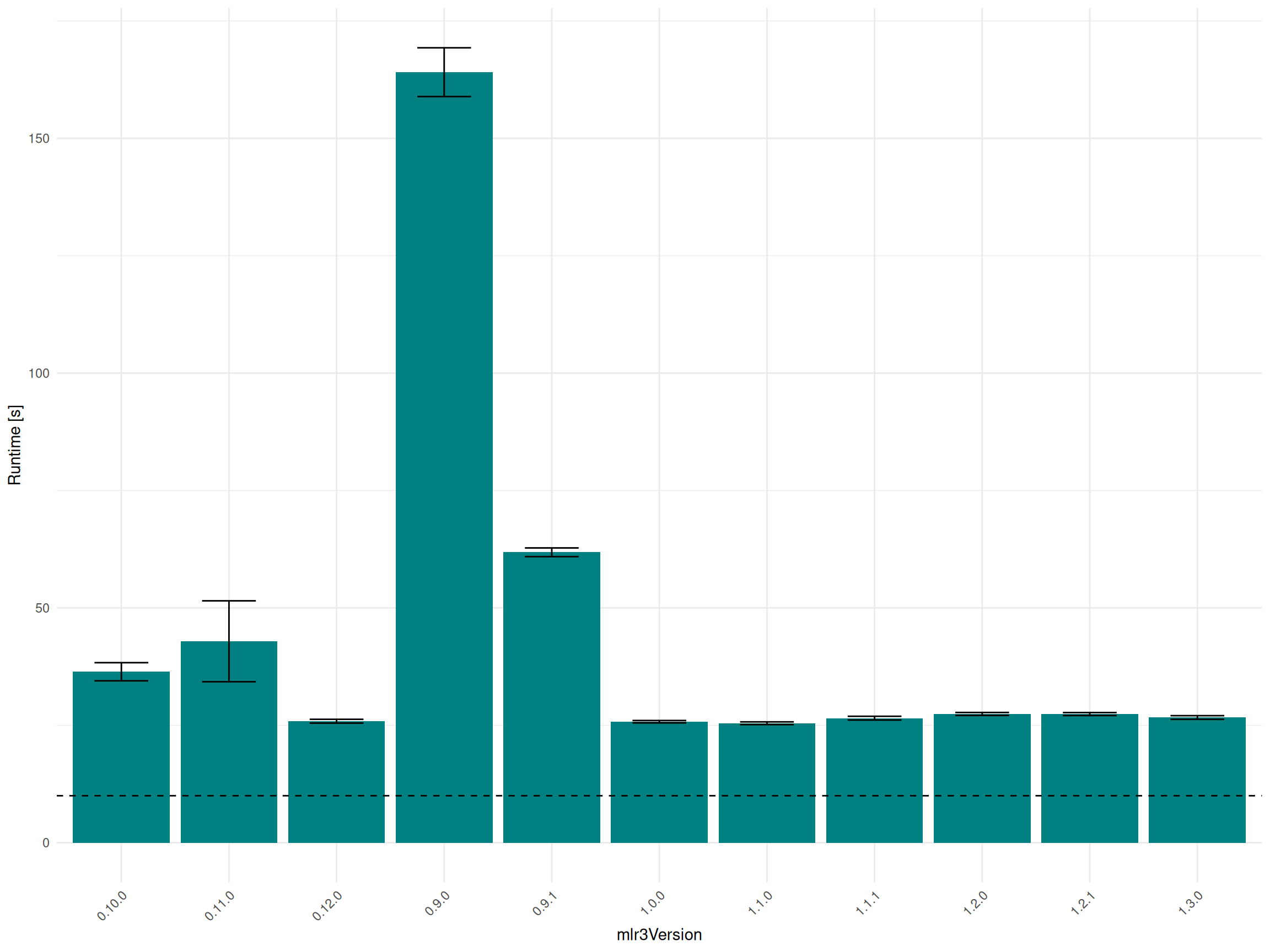

Median runtime of fselect() with models trained for 10 ms depending on the mlr3fselect version. The dashed line indicates the total training time of the models. Error bars represent the median absolute deviation of the runtime.
Runtime and memory usage of fselect() with models trained for 10 ms depending on the mlr3fselect version. The K factor shows how much longer the runtime is than the model training. A red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.
mlr3fselect Version bbotk Version mlr3 Version paradox Version Model Time [ms] Total Model Time [s] Median Runtime [s] Median Runtime 10,000 [s] K Median Memory [MB] Median Memory 10,000 [s]
0.10.0 0.7.2 0.14.1 0.11.0 10 10 36 47 3.6 540 543
0.11.0 0.7.2 0.14.1 0.11.0 10 10 43 38 4.3 540 543
0.12.0 0.8.0 0.19.0 0.11.1 10 10 26 27 2.6 440 512
0.9.0 0.7.2 0.14.1 0.11.0 10 10 160 120 16 966 1,016
0.9.1 0.7.2 0.14.1 0.11.0 10 10 62 40 6.2 547 515
1.0.0 1.0.0 0.20.0 1.0.1 10 10 26 27 2.6 510 422
1.1.0 1.1.0 0.20.2 1.0.1 10 10 25 27 2.5 442 439
1.1.1 1.1.1 0.21.0 1.0.1 10 10 27 28 2.7 444 432
1.2.0 1.2.0 0.21.1 1.0.1 10 10 27 28 2.7 520 545
1.2.1 1.3.0 0.21.1 1.0.1 10 10 27 28 2.7 521 545
1.3.0 1.5.0 0.21.1 1.0.1 10 10 27 28 2.7 446 538

Model Time 1 ms

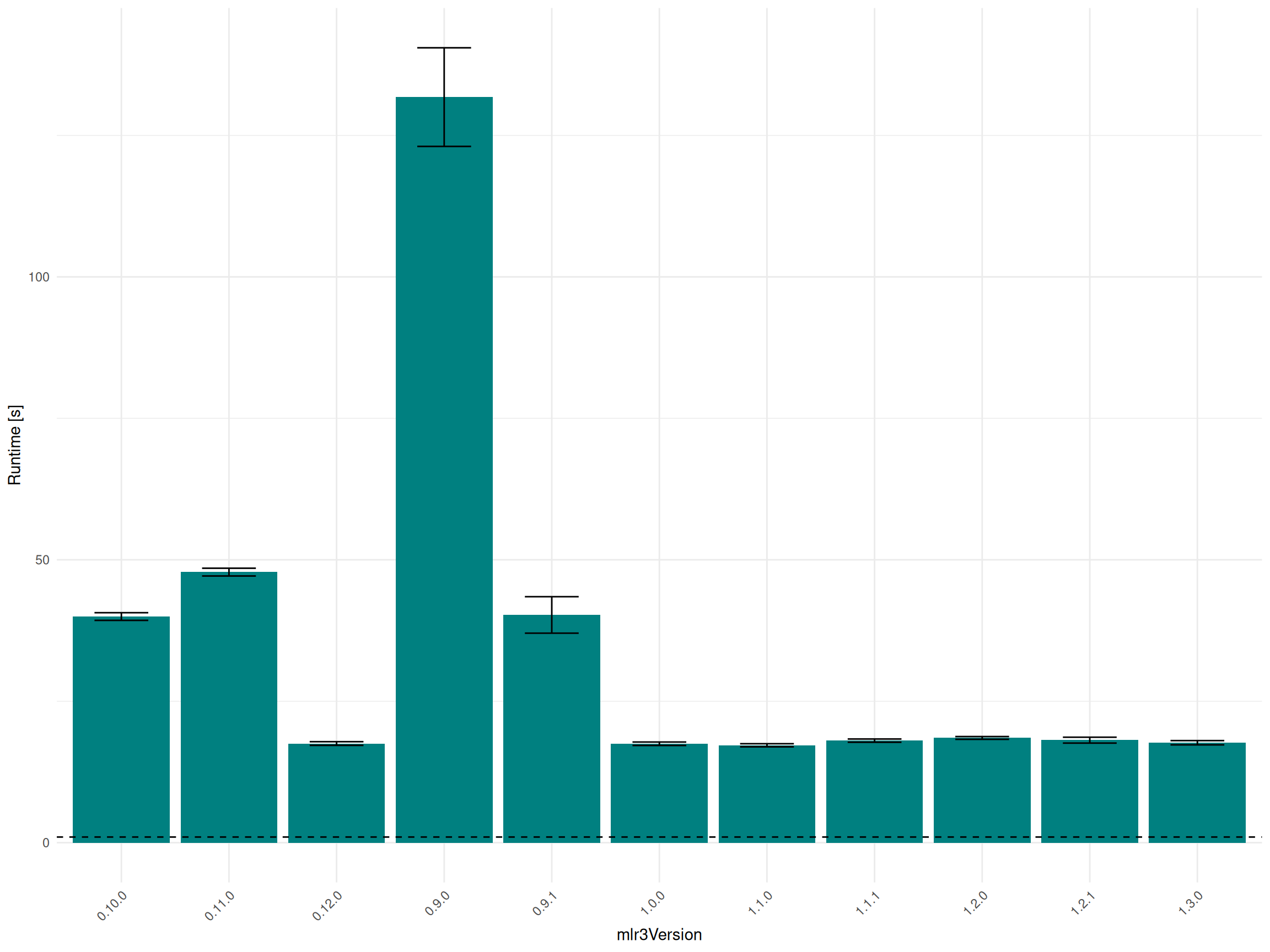

Median runtime of fselect() with models trained for 1 ms depending on the mlr3fselect version. The dashed line indicates the total training time of the models. Error bars represent the median absolute deviation of the runtime.
Runtime and memory usage of fselect() with models trained for 1 ms depending on the mlr3fselect version. The K factor shows how much longer the runtime is than the model training. A red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.
mlr3fselect Version bbotk Version mlr3 Version paradox Version Model Time [ms] Total Model Time [s] Median Runtime [s] Median Runtime 10,000 [s] K Median Memory [MB] Median Memory 10,000 [s]
0.10.0 0.7.2 0.14.1 0.11.0 1 1 40 35 40 540 543
0.11.0 0.7.2 0.14.1 0.11.0 1 1 48 32 48 540 543
0.12.0 0.8.0 0.19.0 0.11.1 1 1 18 17 18 440 512
0.9.0 0.7.2 0.14.1 0.11.0 1 1 130 130 130 966 1,016
0.9.1 0.7.2 0.14.1 0.11.0 1 1 40 40 40 547 515
1.0.0 1.0.0 0.20.0 1.0.1 1 1 17 18 17 510 422
1.1.0 1.1.0 0.20.2 1.0.1 1 1 17 19 17 442 439
1.1.1 1.1.1 0.21.0 1.0.1 1 1 18 20 18 444 432
1.2.0 1.2.0 0.21.1 1.0.1 1 1 19 20 19 520 545
1.2.1 1.3.0 0.21.1 1.0.1 1 1 18 20 18 521 545
1.3.0 1.5.0 0.21.1 1.0.1 1 1 18 19 18 446 538

Memory

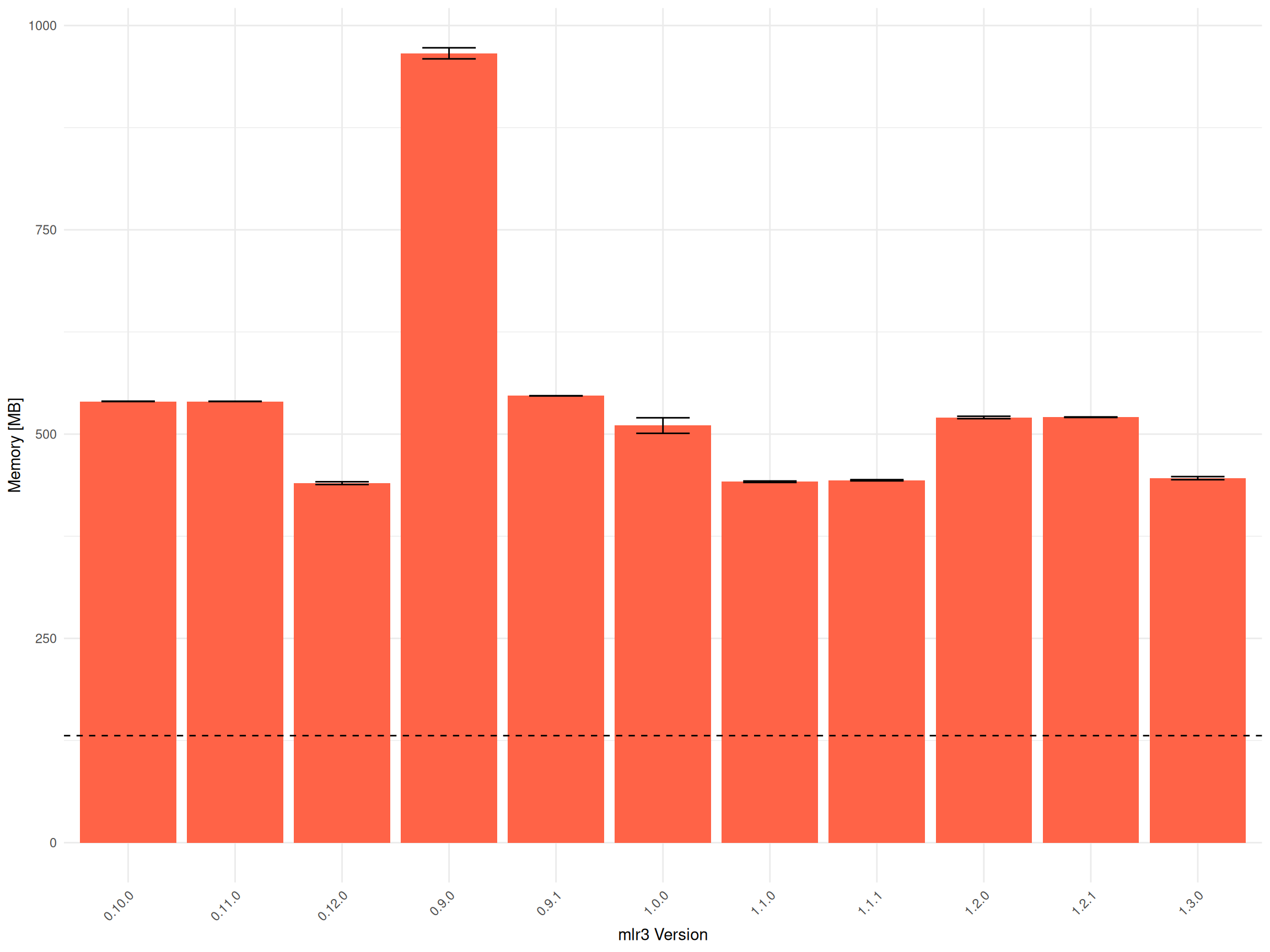

Memory usage of fselect() depending on the mlr3fselect version. Error bars represent the median absolute deviation of the memory usage. The dashed line indicates the memory usage of an empty R session which is 131 MB.

Feature Selection in Parallel

The runtime and memory usage of the fselect() function is measured for different mlr3fselect versions. A random search is used with a batch size of 1000. The feature selection is conducted in parallel on 10 cores with future::multisession. The models are trained for different amounts of time (1 ms, 10 ms, 100 ms, and 1000 ms) on the spam dataset with 1000 and 10,000 instances.

task = tsk("spam")

learner = lrn("classif.sleep",
  sleep_train = model_time / 2,
  sleep_predict = model_time / 2)

future::plan("multisession", workers = 10)

fselect(
  fselector = fs("random_search", batch_size = 1000),
  task = task,
  learner = learner,
  resampling = rsmp("holdout"),
  measure = msr("classif.ce"),
  terminator = trm("evals", n_evals = 1000),
  store_benchmark_result = FALSE,
  store_models = FALSE
)

Model Time 1000 ms

Median runtime of fselect() on 10 cores with models trained for 1000 ms depending on the mlr3fselect version. The dashed line indicates the total training time of the models divided by 10. Error bars represent the median absolute deviation of the runtime.
Runtime and memory usage of fselect() with models trained for 1000 ms depending on the mlr3fselect version. The K factor shows how much longer the runtime is than the model training. A red median runtime indicates that the parallelized version took longer the the sequential run. K values with a red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.
mlr3fselect Version bbotk Version mlr3 Version paradox Version Model Time [ms] Total Model Time [s] Median Runtime [s] Median Runtime Sequential [s] Median Runtime 10,000 [s] K Median Memory [MB] Median Memory 10,000 [s]
0.10.0 0.7.2 0.14.1 0.11.0 1000 1000 120 1,000 120 1.2 1,802 2,248
0.11.0 0.7.2 0.14.1 0.11.0 1000 1000 120 1,000 120 1.2 1,792 2,253
0.12.0 0.8.0 0.19.0 0.11.1 1000 1000 120 1,000 120 1.2 1,782 2,263
0.9.0 0.7.2 0.14.1 0.11.0 1000 1000 160 1,100 170 1.6 4,337 4,680
0.9.1 0.7.2 0.14.1 0.11.0 1000 1000 120 1,000 120 1.2 1,751 2,335
1.0.0 1.0.0 0.20.0 1.0.1 1000 1000 120 1,000 120 1.2 1,751 2,202
1.1.0 1.1.0 0.20.2 1.0.1 1000 1000 120 1,000 120 1.2 1,761 2,273
1.1.1 1.1.1 0.21.0 1.0.1 1000 1000 120 1,000 120 1.2 1,792 2,284
1.2.0 1.2.0 0.21.1 1.0.1 1000 1000 120 1,000 120 1.2 1,802 2,304
1.2.1 1.3.0 0.21.1 1.0.1 1000 1000 120 1,000 120 1.2 1,807 2,304
1.3.0 1.5.0 0.21.1 1.0.1 1000 1000 120 1,000 120 1.2 1,802 2,304

Model Time 100 ms

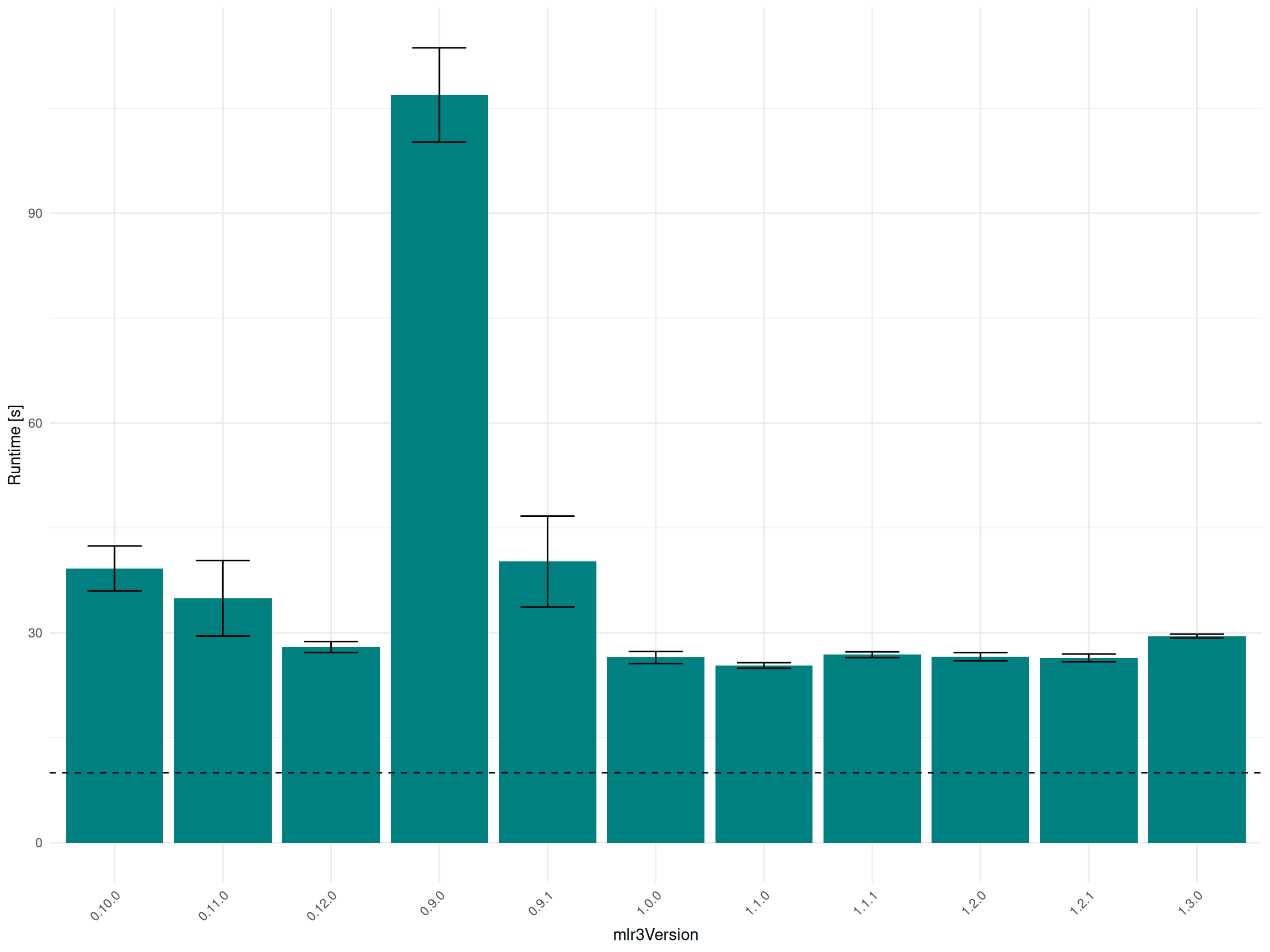

Median runtime of fselect() on 10 cores with models trained for 100 ms depending on the mlr3fselect version. The dashed line indicates the total training time of the models divided by 10. Error bars represent the median absolute deviation of the runtime.
Runtime and memory usage of fselect() with models trained for 100 ms depending on the mlr3fselect version. The K factor shows how much longer the runtime is than the model training. A red median runtime indicates that the parallelized version took longer the the sequential run. K values with a red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.
mlr3fselect Version bbotk Version mlr3 Version paradox Version Model Time [ms] Total Model Time [s] Median Runtime [s] Median Runtime Sequential [s] Median Runtime 10,000 [s] K Median Memory [MB] Median Memory 10,000 [s]
0.10.0 0.7.2 0.14.1 0.11.0 100 100 39 130 44 3.9 1,802 2,248
0.11.0 0.7.2 0.14.1 0.11.0 100 100 35 140 52 3.5 1,792 2,253
0.12.0 0.8.0 0.19.0 0.11.1 100 100 28 120 26 2.8 1,782 2,263
0.9.0 0.7.2 0.14.1 0.11.0 100 100 110 270 78 11 4,337 4,680
0.9.1 0.7.2 0.14.1 0.11.0 100 100 40 130 45 4.0 1,751 2,335
1.0.0 1.0.0 0.20.0 1.0.1 100 100 26 120 26 2.6 1,751 2,202
1.1.0 1.1.0 0.20.2 1.0.1 100 100 25 120 26 2.5 1,761 2,273
1.1.1 1.1.1 0.21.0 1.0.1 100 100 27 120 27 2.7 1,792 2,284
1.2.0 1.2.0 0.21.1 1.0.1 100 100 27 120 27 2.7 1,802 2,304
1.2.1 1.3.0 0.21.1 1.0.1 100 100 26 120 28 2.6 1,807 2,304
1.3.0 1.5.0 0.21.1 1.0.1 100 100 30 120 29 3.0 1,802 2,304

Model Time 10 ms

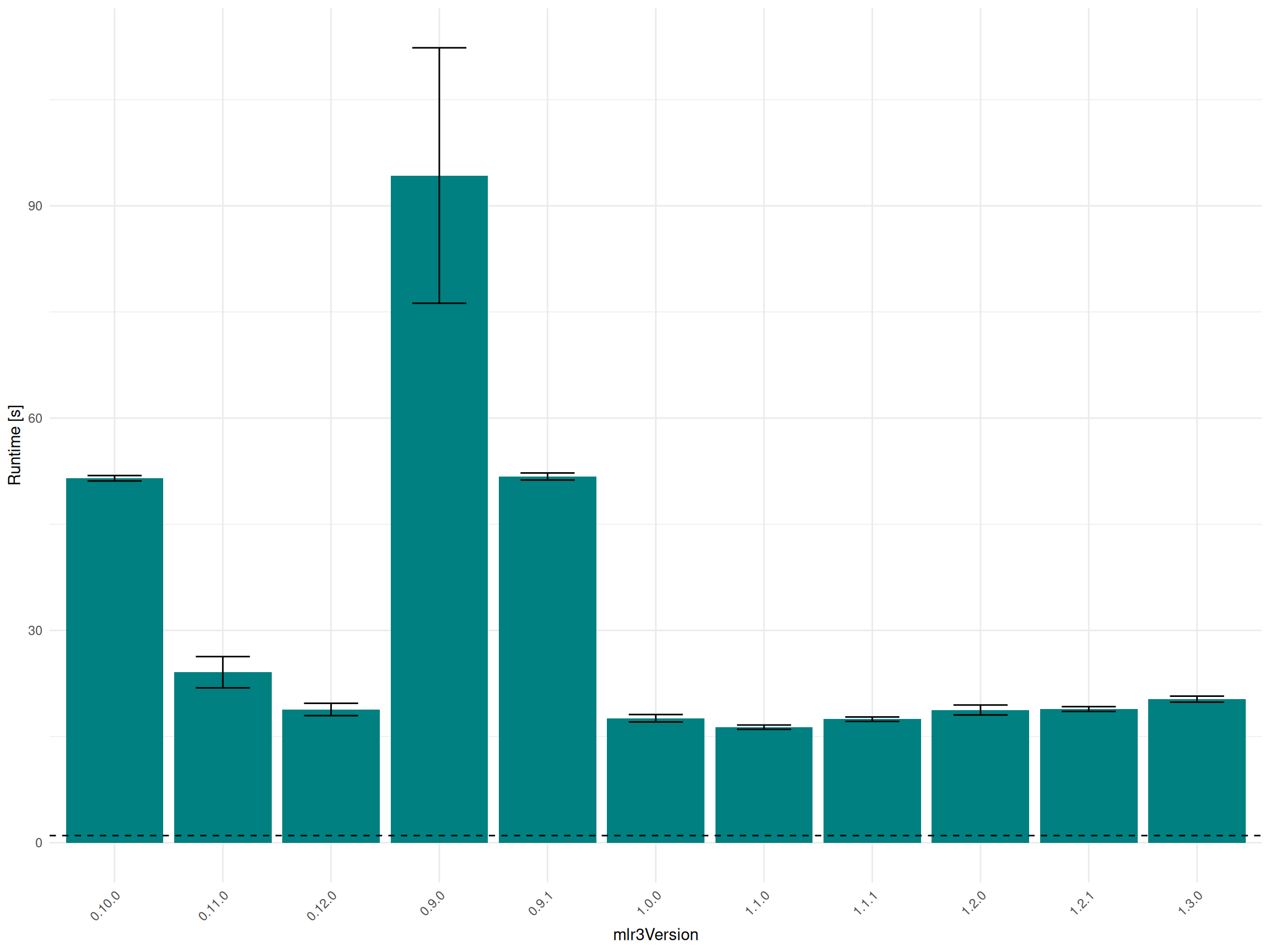

Median runtime of fselect() on 10 cores with models trained for 10 ms depending on the mlr3fselect version. The dashed line indicates the total training time of the models divided by 10. Error bars represent the median absolute deviation of the runtime.
Runtime and memory usage of fselect() with models trained for 10 ms depending on the mlr3fselect version. The K factor shows how much longer the runtime is than the model training. A red median runtime indicates that the parallelized version took longer the the sequential run. K values with a red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.
mlr3fselect Version bbotk Version mlr3 Version paradox Version Model Time [ms] Total Model Time [s] Median Runtime [s] Median Runtime Sequential [s] Median Runtime 10,000 [s] K Median Memory [MB] Median Memory 10,000 [s]
0.10.0 0.7.2 0.14.1 0.11.0 10 10 51 36 29 51 1,802 2,248
0.11.0 0.7.2 0.14.1 0.11.0 10 10 24 43 21 24 1,792 2,253
0.12.0 0.8.0 0.19.0 0.11.1 10 10 19 26 18 19 1,782 2,263
0.9.0 0.7.2 0.14.1 0.11.0 10 10 94 160 96 94 4,337 4,680
0.9.1 0.7.2 0.14.1 0.11.0 10 10 52 62 35 52 1,751 2,335
1.0.0 1.0.0 0.20.0 1.0.1 10 10 18 26 18 18 1,751 2,202
1.1.0 1.1.0 0.20.2 1.0.1 10 10 16 25 16 16 1,761 2,273
1.1.1 1.1.1 0.21.0 1.0.1 10 10 17 27 17 17 1,792 2,284
1.2.0 1.2.0 0.21.1 1.0.1 10 10 19 27 19 19 1,802 2,304
1.2.1 1.3.0 0.21.1 1.0.1 10 10 19 27 18 19 1,807 2,304
1.3.0 1.5.0 0.21.1 1.0.1 10 10 20 27 20 20 1,802 2,304

Model Time 1 ms

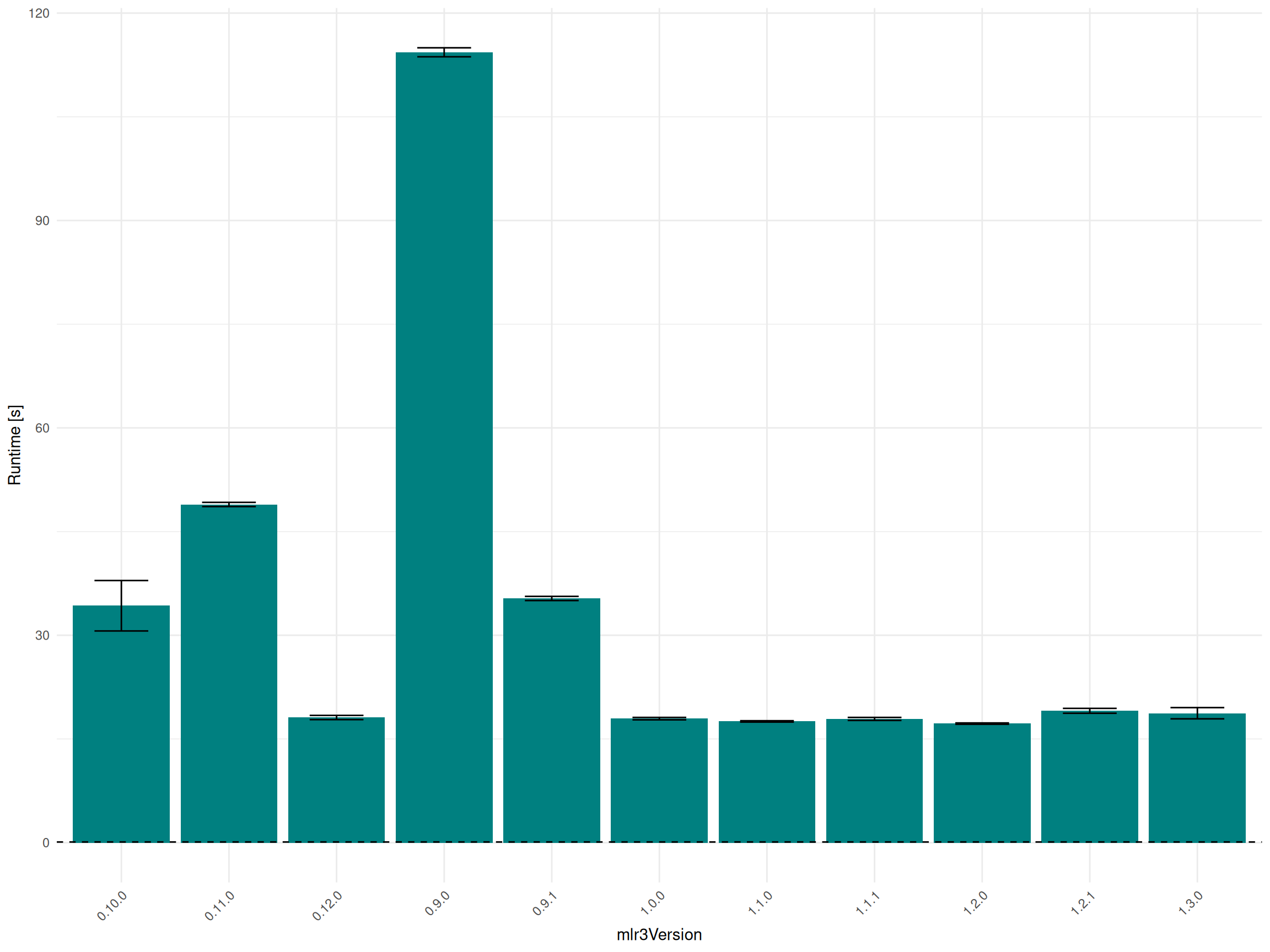

Median runtime of fselect() on 10 cores with models trained for 1 ms depending on the mlr3fselect version. The dashed line indicates the total training time of the models divided by 10. Error bars represent the median absolute deviation of the runtime.
Runtime and memory usage of fselect() with models trained for 1 ms depending on the mlr3fselect version. The K factor shows how much longer the runtime is than the model training. A red median runtime indicates that the parallelized version took longer the the sequential run. K values with a red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.
mlr3fselect Version bbotk Version mlr3 Version paradox Version Model Time [ms] Total Model Time [s] Median Runtime [s] Median Runtime Sequential [s] Median Runtime 10,000 [s] K Median Memory [MB] Median Memory 10,000 [s]
0.10.0 0.7.2 0.14.1 0.11.0 1 1 34 40 41 340 1,802 2,248
0.11.0 0.7.2 0.14.1 0.11.0 1 1 49 48 39 490 1,792 2,253
0.12.0 0.8.0 0.19.0 0.11.1 1 1 18 18 18 180 1,782 2,263
0.9.0 0.7.2 0.14.1 0.11.0 1 1 110 130 120 1,100 4,337 4,680
0.9.1 0.7.2 0.14.1 0.11.0 1 1 35 40 48 350 1,751 2,335
1.0.0 1.0.0 0.20.0 1.0.1 1 1 18 17 18 180 1,751 2,202
1.1.0 1.1.0 0.20.2 1.0.1 1 1 18 17 17 180 1,761 2,273
1.1.1 1.1.1 0.21.0 1.0.1 1 1 18 18 17 180 1,792 2,284
1.2.0 1.2.0 0.21.1 1.0.1 1 1 17 19 18 170 1,802 2,304
1.2.1 1.3.0 0.21.1 1.0.1 1 1 19 18 17 190 1,807 2,304
1.3.0 1.5.0 0.21.1 1.0.1 1 1 19 18 20 190 1,802 2,304

Memory

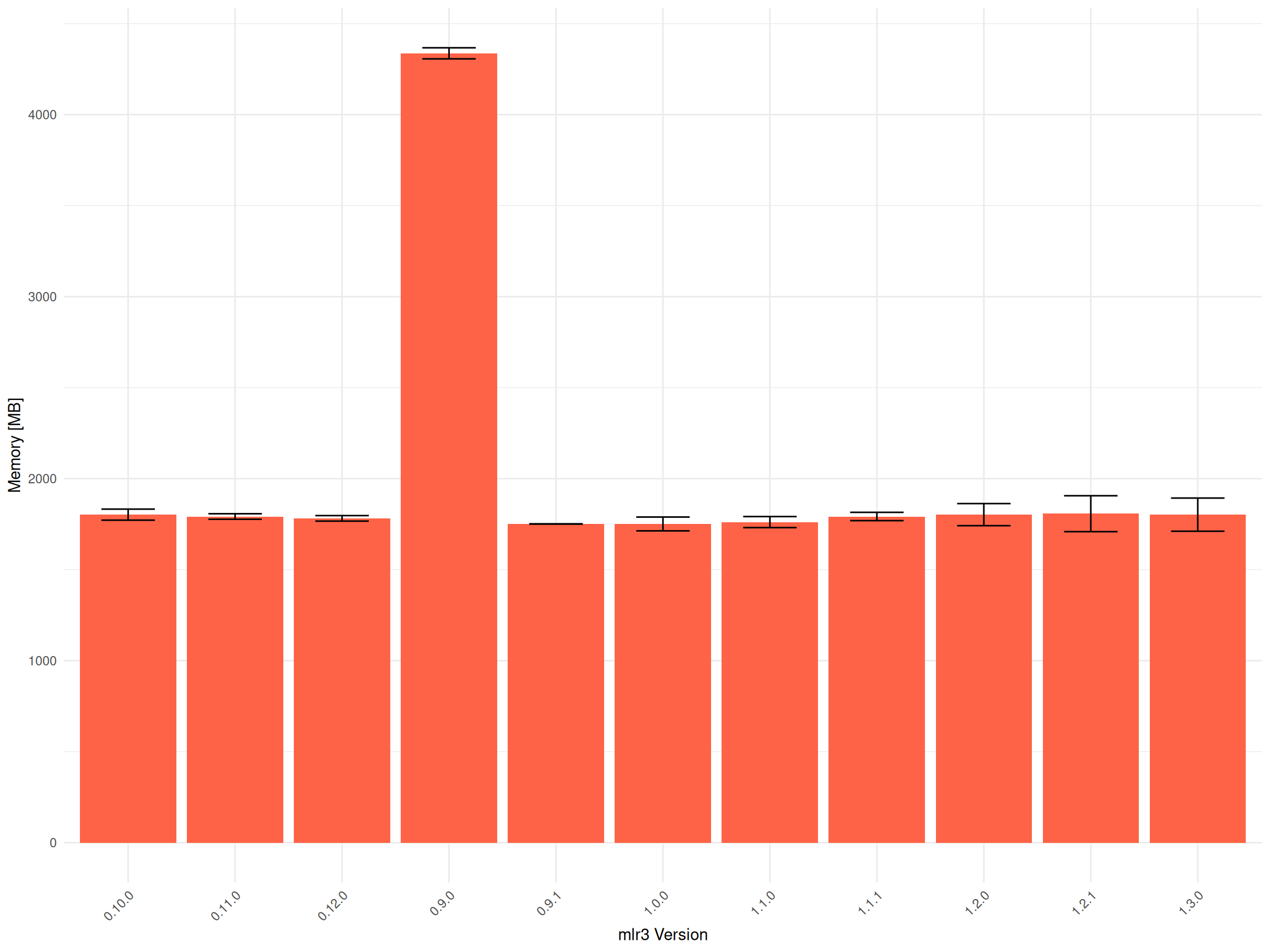

Memory usage of fselect() depending on the mlr3fselect version and the number of resampling iterations. Error bars represent the median absolute deviation of the memory usage.

Nested Feature Selection

The runtime and memory usage of the fselect_nested() function is measured for different mlr3fselect versions. The outer resampling has 10 iterations and the inner random search evaluates 1000 feature subsets in total. The models are trained for different amounts of time (1 ms, 10 ms, 100 ms, and 1000 ms) on the spam dataset with 1000 and 10,000 instances.

task = tsk("spam")

learner = lrn("classif.sleep",
  sleep_train = model_time / 2,
  sleep_predict = model_time / 2)

fselect_nested(
  fselector = fs("random_search", batch_size = 1000),
  task = task,
  learner = learner,
  inner_resampling = rsmp("holdout"),
  outer_resampling = rsmp("subsampling", repeats = 10),
  measure = msr("classif.ce"),
  terminator = trm("evals", n_evals = 1000),
  store_fselect_instance = FALSE,
  store_benchmark_result = FALSE,
  store_models = FALSE
)

Model Time 1000 ms

Median runtime of fselect_nested() with models trained for 1000 ms depending on the mlr3 version. The dashed line indicates the total training time of the models. Error bars represent the median absolute deviation of the runtime.
Runtime and memory usage of fselect_nested() with models trained for 1000 ms depending on the mlr3 version. The K factor shows how much longer the runtime is than the model training. A red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.
mlr3fselect Version bbotk Version mlr3 Version paradox Version Model Time [ms] Total Model Time [s] Median Runtime [s] Median Runtime 10,000 [s] K Median Memory [MB] Median Memory 10,000 [s]
0.10.0 0.7.2 0.14.1 0.11.0 1000 10000 10,000 10,000 1.0 490 584
0.11.0 0.7.2 0.14.1 0.11.0 1000 10000 10,000 10,000 1.0 489 587
0.12.0 0.8.0 0.19.0 0.11.1 1000 10000 10,000 10,000 1.0 523 513
0.9.0 0.7.2 0.14.1 0.11.0 1000 10000 11,000 11,000 1.1 1,096 1,096
0.9.1 0.7.2 0.14.1 0.11.0 1000 10000 10,000 10,000 1.0 531 595
1.0.0 1.0.0 0.20.0 1.0.1 1000 10000 10,000 10,000 1.0 582 509
1.1.0 1.1.0 0.20.2 1.0.1 1000 10000 10,000 10,000 1.0 521 509
1.1.1 1.1.1 0.21.0 1.0.1 1000 10000 10,000 10,000 1.0 512 628
1.2.0 1.2.0 0.21.1 1.0.1 1000 10000 10,000 10,000 1.0 521 531
1.2.1 1.3.0 0.21.1 1.0.1 1000 10000 10,000 10,000 1.0 526 530
1.3.0 1.5.0 0.21.1 1.0.1 1000 10000 10,000 10,000 1.0 537 523

Model Time 100 ms

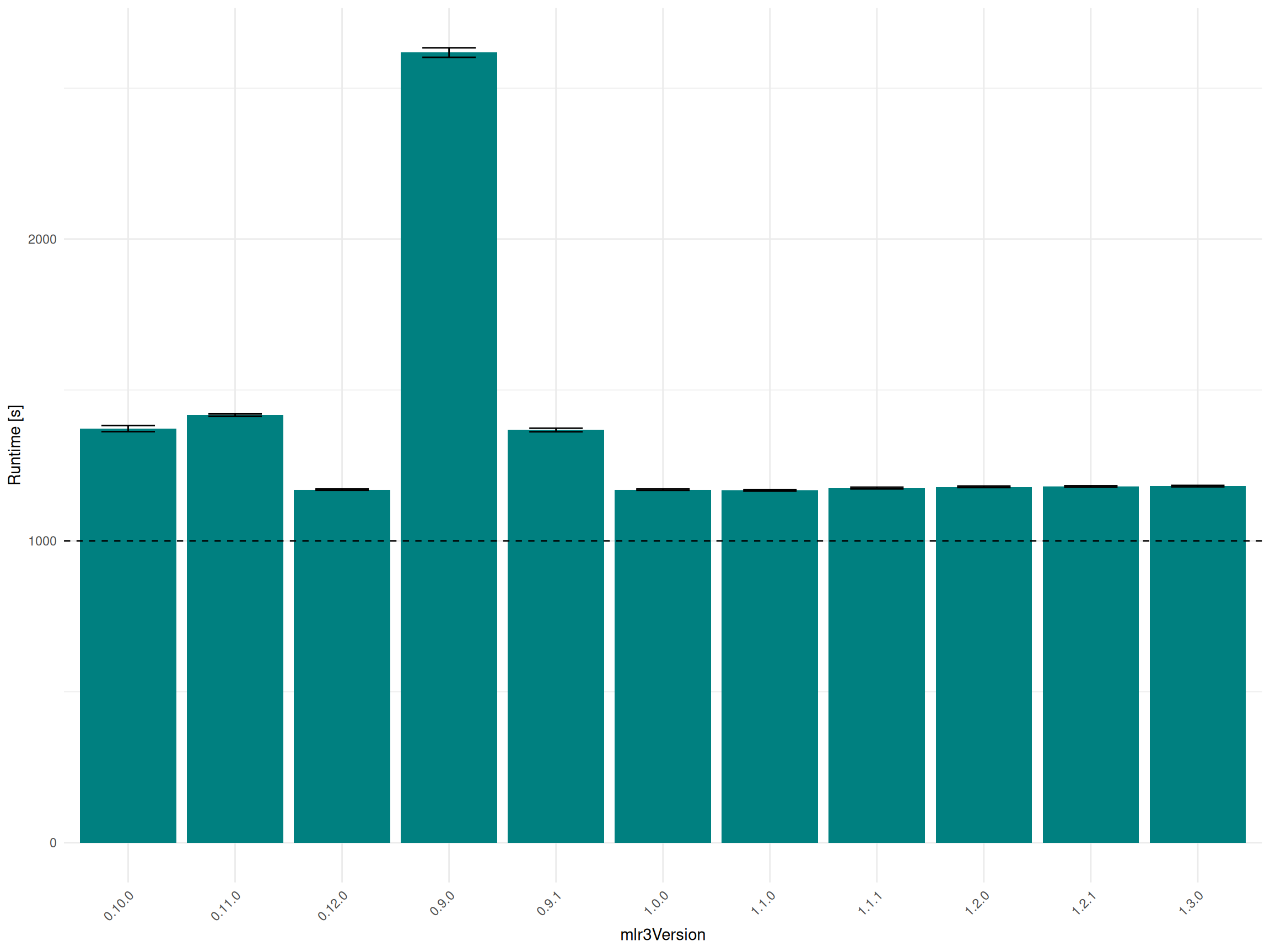

Median runtime of fselect_nested() with models trained for 100 ms depending on the mlr3 version. The dashed line indicates the total training time of the models. Error bars represent the median absolute deviation of the runtime.
Runtime and memory usage of fselect_nested() with models trained for 100 ms depending on the mlr3 version. The K factor shows how much longer the runtime is than the model training. A red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.
mlr3fselect Version bbotk Version mlr3 Version paradox Version Model Time [ms] Total Model Time [s] Median Runtime [s] Median Runtime 10,000 [s] K Median Memory [MB] Median Memory 10,000 [s]
0.10.0 0.7.2 0.14.1 0.11.0 100 1000 1,400 1,400 1.4 490 584
0.11.0 0.7.2 0.14.1 0.11.0 100 1000 1,400 1,500 1.4 489 587
0.12.0 0.8.0 0.19.0 0.11.1 100 1000 1,200 1,200 1.2 523 513
0.9.0 0.7.2 0.14.1 0.11.0 100 1000 2,600 2,400 2.6 1,096 1,096
0.9.1 0.7.2 0.14.1 0.11.0 100 1000 1,400 1,300 1.4 531 595
1.0.0 1.0.0 0.20.0 1.0.1 100 1000 1,200 1,200 1.2 582 509
1.1.0 1.1.0 0.20.2 1.0.1 100 1000 1,200 1,200 1.2 521 509
1.1.1 1.1.1 0.21.0 1.0.1 100 1000 1,200 1,200 1.2 512 628
1.2.0 1.2.0 0.21.1 1.0.1 100 1000 1,200 1,200 1.2 521 531
1.2.1 1.3.0 0.21.1 1.0.1 100 1000 1,200 1,200 1.2 526 530
1.3.0 1.5.0 0.21.1 1.0.1 100 1000 1,200 1,200 1.2 537 523

Model Time 10 ms

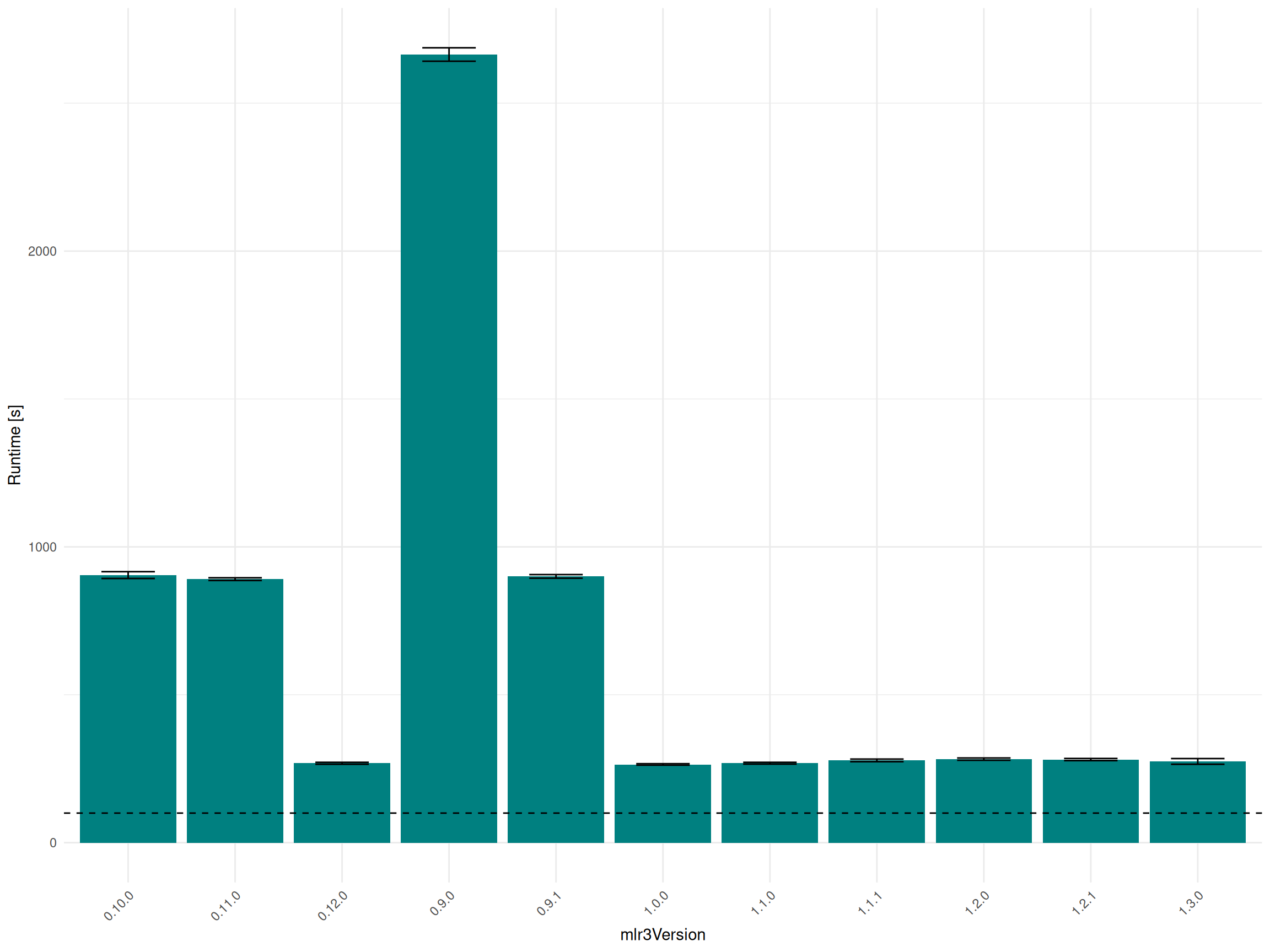

Median runtime of fselect_nested() with models trained for 10 ms depending on the mlr3 version. The dashed line indicates the total training time of the models. Error bars represent the median absolute deviation of the runtime.
Runtime and memory usage of fselect_nested() with models trained for 10 ms depending on the mlr3 version. The K factor shows how much longer the runtime is than the model training. A red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.
mlr3fselect Version bbotk Version mlr3 Version paradox Version Model Time [ms] Total Model Time [s] Median Runtime [s] Median Runtime 10,000 [s] K Median Memory [MB] Median Memory 10,000 [s]
0.10.0 0.7.2 0.14.1 0.11.0 10 100 900 1,900 9.0 490 584
0.11.0 0.7.2 0.14.1 0.11.0 10 100 890 1,500 8.9 489 587
0.12.0 0.8.0 0.19.0 0.11.1 10 100 270 280 2.7 523 513
0.9.0 0.7.2 0.14.1 0.11.0 10 100 2,700 3,400 27 1,096 1,096
0.9.1 0.7.2 0.14.1 0.11.0 10 100 900 1,600 9.0 531 595
1.0.0 1.0.0 0.20.0 1.0.1 10 100 260 270 2.6 582 509
1.1.0 1.1.0 0.20.2 1.0.1 10 100 270 280 2.7 521 509
1.1.1 1.1.1 0.21.0 1.0.1 10 100 280 290 2.8 512 628
1.2.0 1.2.0 0.21.1 1.0.1 10 100 280 300 2.8 521 531
1.2.1 1.3.0 0.21.1 1.0.1 10 100 280 300 2.8 526 530
1.3.0 1.5.0 0.21.1 1.0.1 10 100 270 290 2.7 537 523

Model Time 1 ms

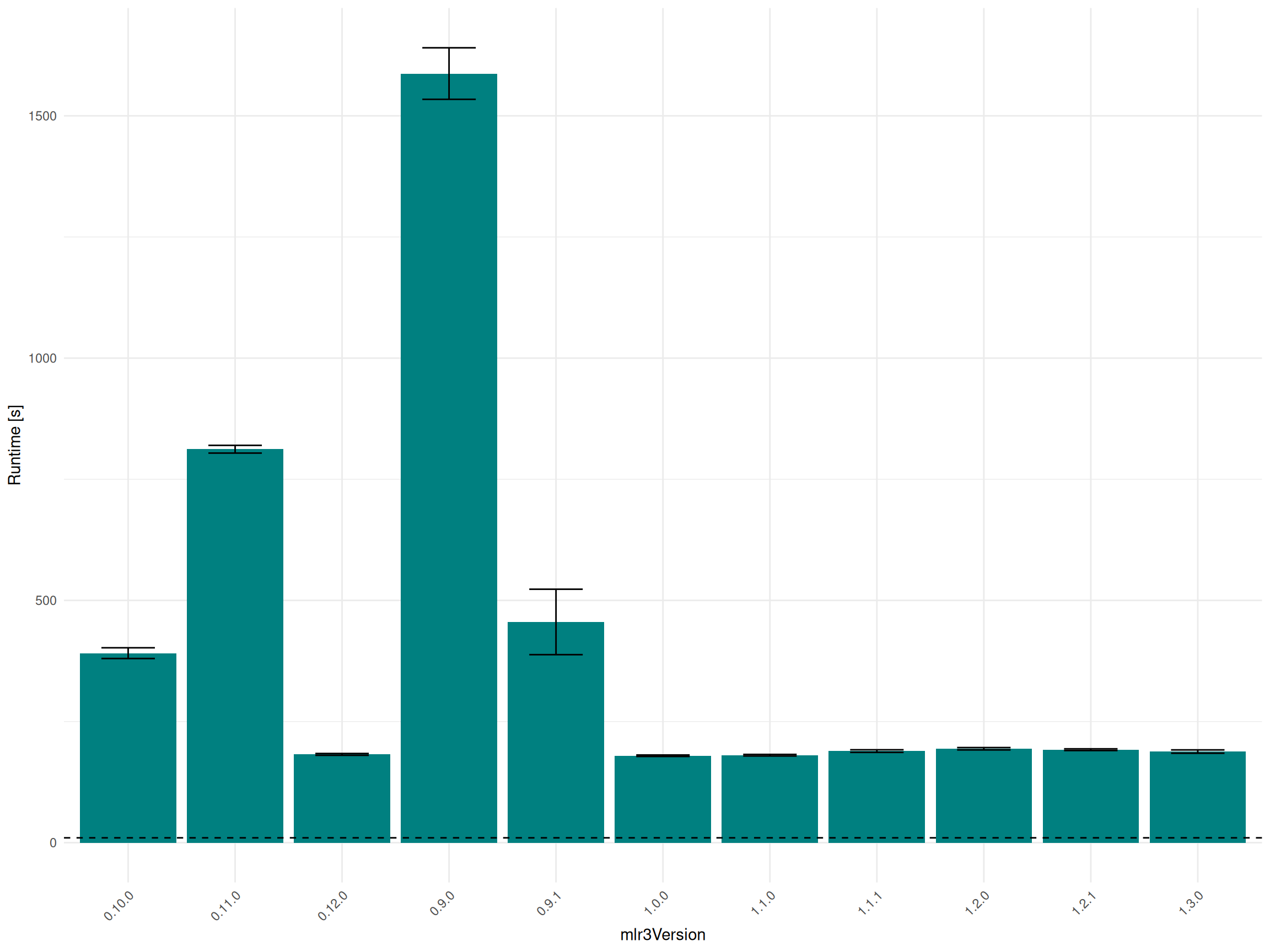

Median runtime of fselect_nested() with models trained for 1 ms depending on the mlr3 version. The dashed line indicates the total training time of the models. Error bars represent the median absolute deviation of the runtime.
Runtime and memory usage of fselect_nested() with models trained for 1 ms depending on the mlr3 version. The K factor shows how much longer the runtime is than the model training. A red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.
mlr3fselect Version bbotk Version mlr3 Version paradox Version Model Time [ms] Total Model Time [s] Median Runtime [s] Median Runtime 10,000 [s] K Median Memory [MB] Median Memory 10,000 [s]
0.10.0 0.7.2 0.14.1 0.11.0 1 10 390 1,800 39 490 584
0.11.0 0.7.2 0.14.1 0.11.0 1 10 810 720 81 489 587
0.12.0 0.8.0 0.19.0 0.11.1 1 10 180 200 18 523 513
0.9.0 0.7.2 0.14.1 0.11.0 1 10 1,600 3,300 160 1,096 1,096
0.9.1 0.7.2 0.14.1 0.11.0 1 10 460 1,500 46 531 595
1.0.0 1.0.0 0.20.0 1.0.1 1 10 180 190 18 582 509
1.1.0 1.1.0 0.20.2 1.0.1 1 10 180 190 18 521 509
1.1.1 1.1.1 0.21.0 1.0.1 1 10 190 200 19 512 628
1.2.0 1.2.0 0.21.1 1.0.1 1 10 190 210 19 521 531
1.2.1 1.3.0 0.21.1 1.0.1 1 10 190 210 19 526 530
1.3.0 1.5.0 0.21.1 1.0.1 1 10 190 200 19 537 523

Memory

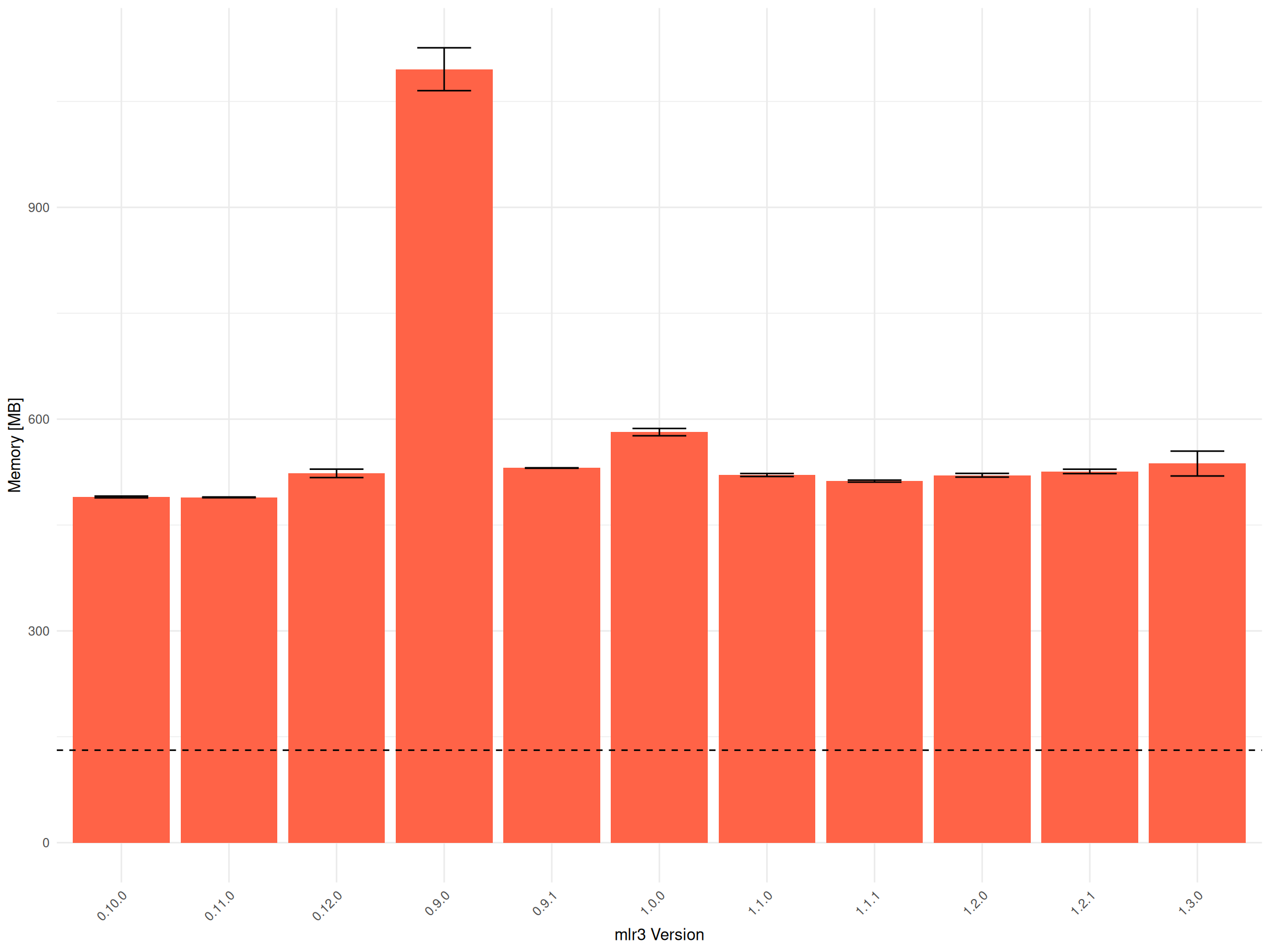

Memory usage of fselect() depending on the mlr3fselect version and the number of resampling iterations. Error bars represent the median absolute deviation of the memory usage. The dashed line indicates the memory usage of an empty R session which is 131 MB.

Nested Feature Selection in Parallel

The runtime and memory usage of the fselect_nested() function is measured for different mlr3fselect versions. The outer resampling has 10 iterations and the inner random search evaluates 1000 feature subsets in total. The outer resampling is run in parallel on 10 cores with future::multisession. The models are trained for different amounts of time (1 ms, 10 ms, 100 ms, and 1000 ms) on the spam dataset with 1000 and 10,000 instances.

task = tsk("spam")

learner = lrn("classif.sleep",
  sleep_train = model_time / 2,
  sleep_predict = model_time / 2)

future::plan("multisession", workers = 10)

fselect_nested(
  fselector = fs("random_search", batch_size = 1000),
  task = task,
  learner = learner,
  inner_resampling = rsmp("holdout"),
  outer_resampling = rsmp("subsampling", repeats = 10),
  measure = msr("classif.ce"),
  terminator = trm("evals", n_evals = 1000),
  store_fselect_instance = FALSE,
  store_benchmark_result = FALSE,
  store_models = FALSE
)

Model Time 1000 ms

Median runtime of fselect_nested() on 10 cores with models trained for 1000 ms depending on the mlr3 version. The dashed line indicates the total training time of the models. Error bars represent the median absolute deviation of the runtime.
Runtime and memory usage of fselect_nested() on 10 cores with models trained for 1000 ms depending on the mlr3 version. The K factor shows how much longer the runtime is than the model training. A red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.
mlr3fselect Version bbotk Version mlr3 Version paradox Version Model Time [ms] Total Model Time [s] Median Runtime [s] Median Runtime Sequential [s] Median Runtime 10,000 [s] K Median Memory [MB] Median Memory 10,000 [s]
0.10.0 0.7.2 0.14.1 0.11.0 1000 10000 1,000 10,000 1,000 1.0 4,178 5,693
0.11.0 0.7.2 0.14.1 0.11.0 1000 10000 1,000 10,000 1,000 1.0 4,168 5,652
0.12.0 0.8.0 0.19.0 0.11.1 1000 10000 1,000 10,000 1,000 1.0 3,318 4,301
0.9.0 0.7.2 0.14.1 0.11.0 1000 10000 1,300 11,000 1,300 1.3 8,417 9,124
0.9.1 0.7.2 0.14.1 0.11.0 1000 10000 1,000 10,000 1,000 1.0 4,762 5,396
1.0.0 1.0.0 0.20.0 1.0.1 1000 10000 1,000 10,000 1,000 1.0 3,205 4,332
1.1.0 1.1.0 0.20.2 1.0.1 1000 10000 1,000 10,000 1,000 1.0 3,226 4,311
1.1.1 1.1.1 0.21.0 1.0.1 1000 10000 1,000 10,000 1,000 1.0 3,267 4,618
1.2.0 1.2.0 0.21.1 1.0.1 1000 10000 1,000 10,000 1,000 1.0 3,308 4,419
1.2.1 1.3.0 0.21.1 1.0.1 1000 10000 1,000 10,000 1,000 1.0 3,308 4,342
1.3.0 1.5.0 0.21.1 1.0.1 1000 10000 1,000 10,000 1,000 1.0 3,318 4,444

Model Time 100 ms

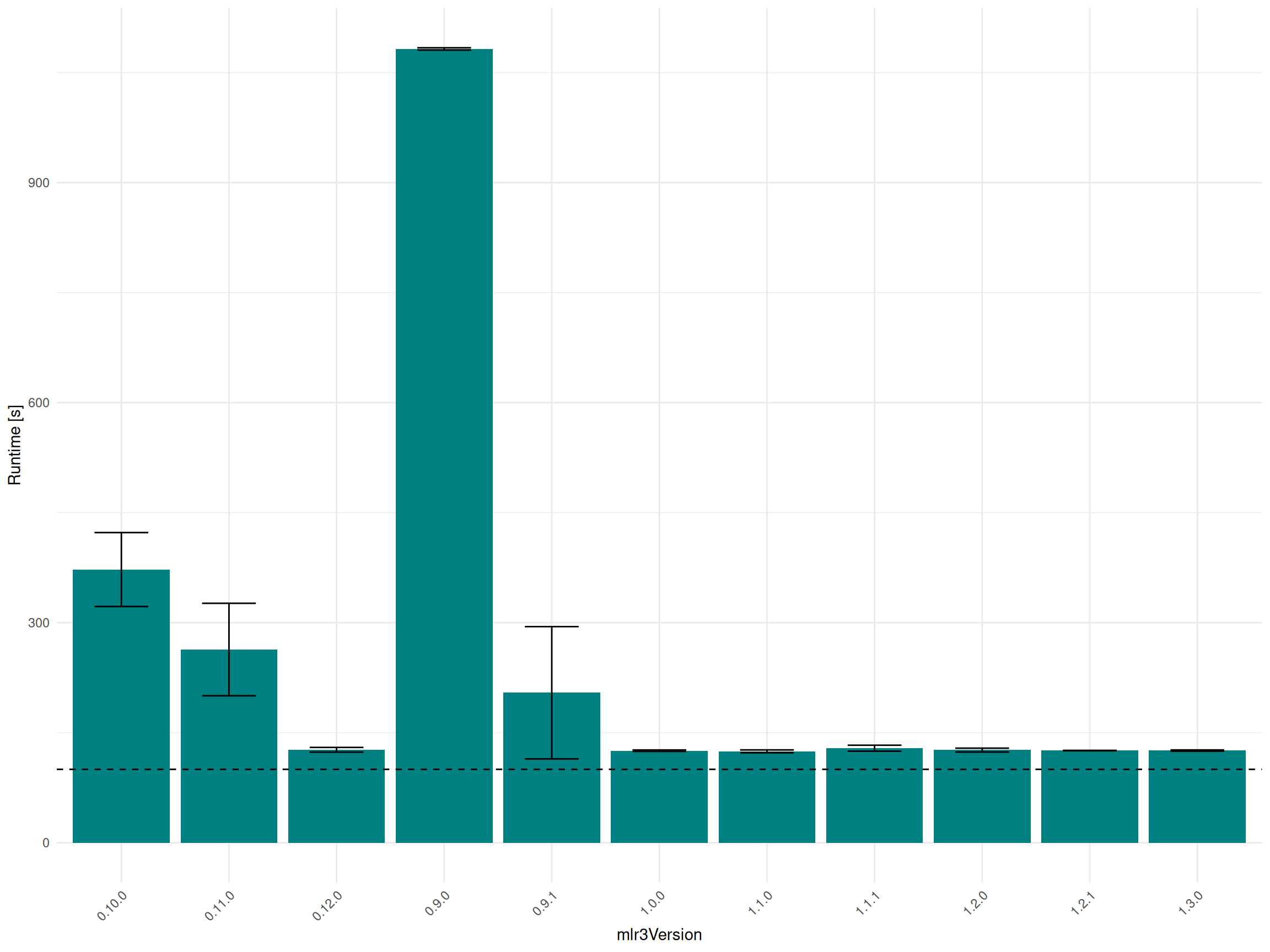

Median runtime of fselect_nested() on 10 cores with models trained for 100 ms depending on the mlr3 version. The dashed line indicates the total training time of the models. Error bars represent the median absolute deviation of the runtime.
Runtime and memory usage of fselect_nested() on 10 cores with models trained for 100 ms depending on the mlr3 version. The K factor shows how much longer the runtime is than the model training. A red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.
mlr3fselect Version bbotk Version mlr3 Version paradox Version Model Time [ms] Total Model Time [s] Median Runtime [s] Median Runtime Sequential [s] Median Runtime 10,000 [s] K Median Memory [MB] Median Memory 10,000 [s]
0.10.0 0.7.2 0.14.1 0.11.0 100 1000 370 1,400 230 3.7 4,178 5,693
0.11.0 0.7.2 0.14.1 0.11.0 100 1000 260 1,400 220 2.6 4,168 5,652
0.12.0 0.8.0 0.19.0 0.11.1 100 1000 130 1,200 130 1.3 3,318 4,301
0.9.0 0.7.2 0.14.1 0.11.0 100 1000 1,100 2,600 580 11 8,417 9,124
0.9.1 0.7.2 0.14.1 0.11.0 100 1000 200 1,400 230 2.0 4,762 5,396
1.0.0 1.0.0 0.20.0 1.0.1 100 1000 130 1,200 130 1.3 3,205 4,332
1.1.0 1.1.0 0.20.2 1.0.1 100 1000 120 1,200 130 1.2 3,226 4,311
1.1.1 1.1.1 0.21.0 1.0.1 100 1000 130 1,200 130 1.3 3,267 4,618
1.2.0 1.2.0 0.21.1 1.0.1 100 1000 130 1,200 130 1.3 3,308 4,419
1.2.1 1.3.0 0.21.1 1.0.1 100 1000 130 1,200 130 1.3 3,308 4,342
1.3.0 1.5.0 0.21.1 1.0.1 100 1000 130 1,200 130 1.3 3,318 4,444

Model Time 10 ms

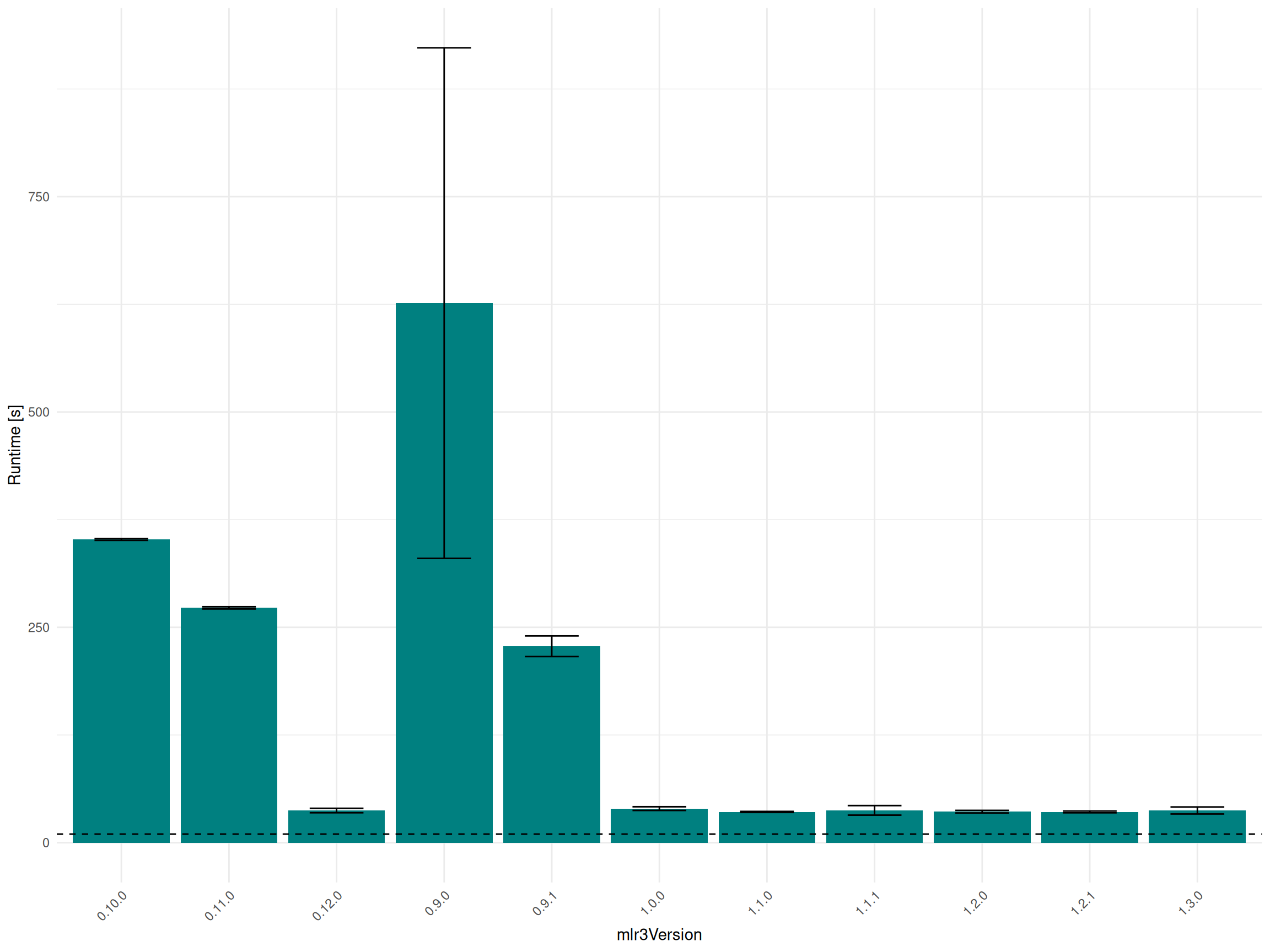

Median runtime of fselect_nested() on 10 cores with models trained for 10 ms depending on the mlr3 version. The dashed line indicates the total training time of the models. Error bars represent the median absolute deviation of the runtime.
Runtime and memory usage of fselect_nested() on 10 cores with models trained for 10 ms depending on the mlr3 version. The K factor shows how much longer the runtime is than the model training. A red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.
mlr3fselect Version bbotk Version mlr3 Version paradox Version Model Time [ms] Total Model Time [s] Median Runtime [s] Median Runtime Sequential [s] Median Runtime 10,000 [s] K Median Memory [MB] Median Memory 10,000 [s]
0.10.0 0.7.2 0.14.1 0.11.0 10 100 350 900 300 35 4,178 5,693
0.11.0 0.7.2 0.14.1 0.11.0 10 100 270 890 340 27 4,168 5,652
0.12.0 0.8.0 0.19.0 0.11.1 10 100 37 270 38 3.7 3,318 4,301
0.9.0 0.7.2 0.14.1 0.11.0 10 100 630 2,700 1,200 63 8,417 9,124
0.9.1 0.7.2 0.14.1 0.11.0 10 100 230 900 180 23 4,762 5,396
1.0.0 1.0.0 0.20.0 1.0.1 10 100 40 260 37 4.0 3,205 4,332
1.1.0 1.1.0 0.20.2 1.0.1 10 100 36 270 35 3.6 3,226 4,311
1.1.1 1.1.1 0.21.0 1.0.1 10 100 38 280 38 3.8 3,267 4,618
1.2.0 1.2.0 0.21.1 1.0.1 10 100 36 280 36 3.6 3,308 4,419
1.2.1 1.3.0 0.21.1 1.0.1 10 100 36 280 35 3.6 3,308 4,342
1.3.0 1.5.0 0.21.1 1.0.1 10 100 37 270 38 3.7 3,318 4,444

Model Time 1 ms

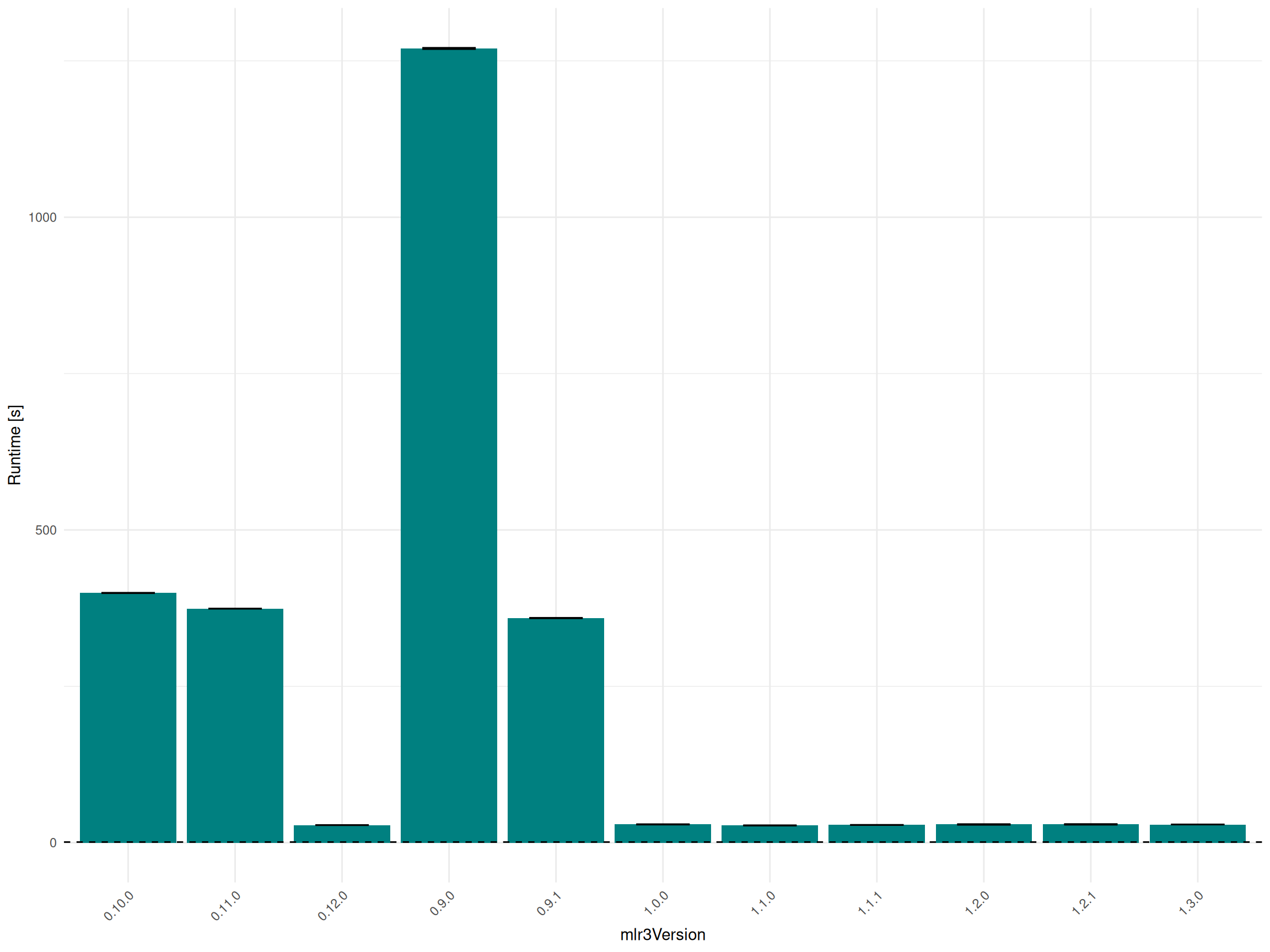

Median runtime of fselect_nested() on 10 cores with models trained for 1 ms depending on the mlr3 version. The dashed line indicates the total training time of the models. Error bars represent the median absolute deviation of the runtime.
Runtime and memory usage of fselect_nested() on 10 cores with models trained for 1 ms depending on the mlr3 version. The K factor shows how much longer the runtime is than the model training. A red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.
mlr3fselect Version bbotk Version mlr3 Version paradox Version Model Time [ms] Total Model Time [s] Median Runtime [s] Median Runtime Sequential [s] Median Runtime 10,000 [s] K Median Memory [MB] Median Memory 10,000 [s]
0.10.0 0.7.2 0.14.1 0.11.0 1 10 400 390 260 400 4,178 5,693
0.11.0 0.7.2 0.14.1 0.11.0 1 10 370 810 360 370 4,168 5,652
0.12.0 0.8.0 0.19.0 0.11.1 1 10 28 180 29 28 3,318 4,301
0.9.0 0.7.2 0.14.1 0.11.0 1 10 1,300 1,600 1,300 1,300 8,417 9,124
0.9.1 0.7.2 0.14.1 0.11.0 1 10 360 460 280 360 4,762 5,396
1.0.0 1.0.0 0.20.0 1.0.1 1 10 29 180 28 29 3,205 4,332
1.1.0 1.1.0 0.20.2 1.0.1 1 10 28 180 36 28 3,226 4,311
1.1.1 1.1.1 0.21.0 1.0.1 1 10 28 190 29 28 3,267 4,618
1.2.0 1.2.0 0.21.1 1.0.1 1 10 29 190 29 29 3,308 4,419
1.2.1 1.3.0 0.21.1 1.0.1 1 10 29 190 30 29 3,308 4,342
1.3.0 1.5.0 0.21.1 1.0.1 1 10 29 190 30 29 3,318 4,444

Memory

Memory usage of fselect() depending on the mlr3fselect version and the number of resampling iterations. Error bars represent the median absolute deviation of the memory usage.
