mlr3tuning - Runtime and Memory Benchmarks

Scope

This report analyzes the runtime and memory usage of the mlr3tuning package across different versions. The benchmarks include the tune() and tune_nested() functions both in sequential and parallel mode. The benchmarks vary the training time of the models and the size of the dataset.

Given the extensive package ecosystem of mlr3, performance bottlenecks can occur at multiple stages. This report aims to help users determine whether the runtime of their workflows falls within expected ranges. If significant runtime or memory anomalies are observed, users are encouraged to report them by opening a GitHub issue.

Benchmarks are conducted on a high-performance cluster optimized for multi-core performance rather than single-core speed. Consequently, runtimes may be faster on a local machine.

Summary of Latest mlr3tuning Version

The benchmarks are comprehensive; therefore, we present a summary of the results for the latest mlr3tuning version. We measure the runtime and memory usage of a random search with 1000 resampling iterations on the spam dataset with 1000 and 10,000 instances. The nested resampling is conducted with 10 outer resampling iterations and uses the same random search for the inner resampling loop. The overhead introduced by tune() and tune_nested() should always be considered relative to the training time of the models. For models with longer training times, such as 1 second, the overhead is minimal. For models with a training time of 100 ms, the overhead is approximately 20%. For models with a training time of 10 ms, the overhead approximately doubles or triples the runtime. In cases where the training time is only 1 ms, the overhead results in the runtime being 15 to 25 times larger than the actual model training time. The memory usage of tune() and tune_nested() is between 370 MB and 670 MB. Running an empty R session consumes 131 MB of memory.

mlr3tuning utilizes the future package to enable parallelization over resampling iterations. However, running tune() and tune_nested() in parallel introduces overhead due to the initiation of worker processes. Therefore, we compare the runtime of parallel execution with that of sequential execution. For models with a 1-second, 100 ms, and 10 ms training time, using tune() in parallel reduces runtime. For models 1 ms training times, sequential execution becomes slower than parallel execution. Memory usage increases significantly with the number of cores since each core initiates a separate R session. Utilizing 10 cores results in a total memory usage of around 1.5 GB. The tune_nested() functions parallelize over the outer resampling loop. For all training times, the parallel version is faster than the sequential version. The memory usage is around 3.6 GB.

Tune

The runtime and memory usage of the tune() function is measured for different mlr3tuning versions. A random search is used with a batch size of 1000. The models are trained for different amounts of time (1 ms, 10 ms, 100 ms, and 1000 ms) on the spam dataset with 1000 and 10,000 instances.

task = tsk("spam")

learner = lrn("classif.sleep",
  sleep_train = model_time / 2,
  sleep_predict = model_time / 2,
  x = to_tune(0, 1))

tune(
  tune = tnr("random_search", batch_size = 1000),
  task = task,
  learner = learner,
  resampling = rsmp("holdout"),
  measure = msr("classif.ce"),
  terminator = trm("evals", n_evals = 1000),
  store_benchmark_result = FALSE,
  store_models = FALSE
)

Model Time 1000 ms

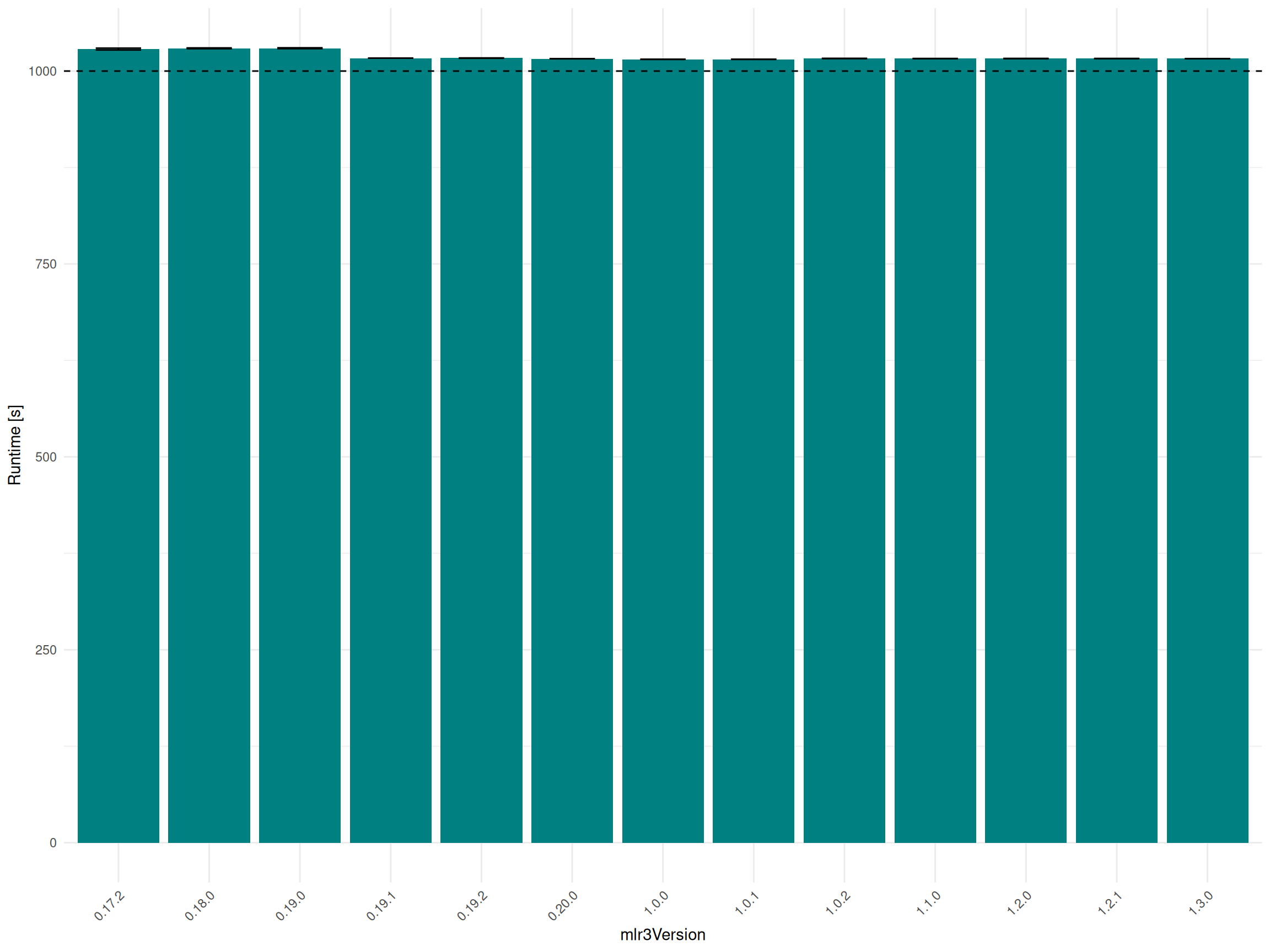

Median runtime of tune() with models trained for 1000 ms depending on the mlr3tuning version. The dashed line indicates the total training time of the models. Error bars represent the median absolute deviation of the runtime.

Runtime and memory usage of tune() with models trained for 1000 ms depending on the mlr3tuning version. The K factor shows how much longer the runtime is than the model training. A red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.

mlr3tuning Version	bbotk Version	mlr3 Version	paradox Version	Model Time [ms]	Total Model Time [s]	Median Runtime [s]	Median Runtime 10,000 [s]	K	Median Memory [MB]	Median Memory 10,000 [s]
0.17.2	0.7.2	0.14.1	0.11.0	1000	1000	1,000	1,000	1.0	519	705
0.18.0	0.7.2	0.14.1	0.11.0	1000	1000	1,000	1,000	1.0	518	722
0.19.0	0.7.2	0.16.1	0.11.1	1000	1000	1,000	1,000	1.0	562	729
0.19.1	0.7.3	0.17.0	0.11.1	1000	1000	1,000	1,000	1.0	511	549
0.19.2	0.7.3	0.17.0	0.11.1	1000	1000	1,000	1,000	1.0	511	549
0.20.0	0.8.0	0.19.0	0.11.1	1000	1000	1,000	1,000	1.0	424	534
1.0.0	1.0.0	0.20.0	1.0.1	1000	1000	1,000	1,000	1.0	434	544
1.0.1	1.1.0	0.20.2	1.0.1	1000	1000	1,000	1,000	1.0	434	470
1.0.2	1.1.0	0.21.0	1.0.1	1000	1000	1,000	1,000	1.0	362	565
1.1.0	1.2.0	0.21.1	1.0.1	1000	1000	1,000	1,000	1.0	362	564
1.2.0	1.3.0	0.21.1	1.0.1	1000	1000	1,000	1,000	1.0	364	564
1.2.1	1.4.0	0.22.0	1.0.1	1000	1000	1,000	1,000	1.0	363	564
1.3.0	1.5.0	0.22.1	1.0.1	1000	1000	1,000	1,000	1.0	364	566

Model Time 100 ms

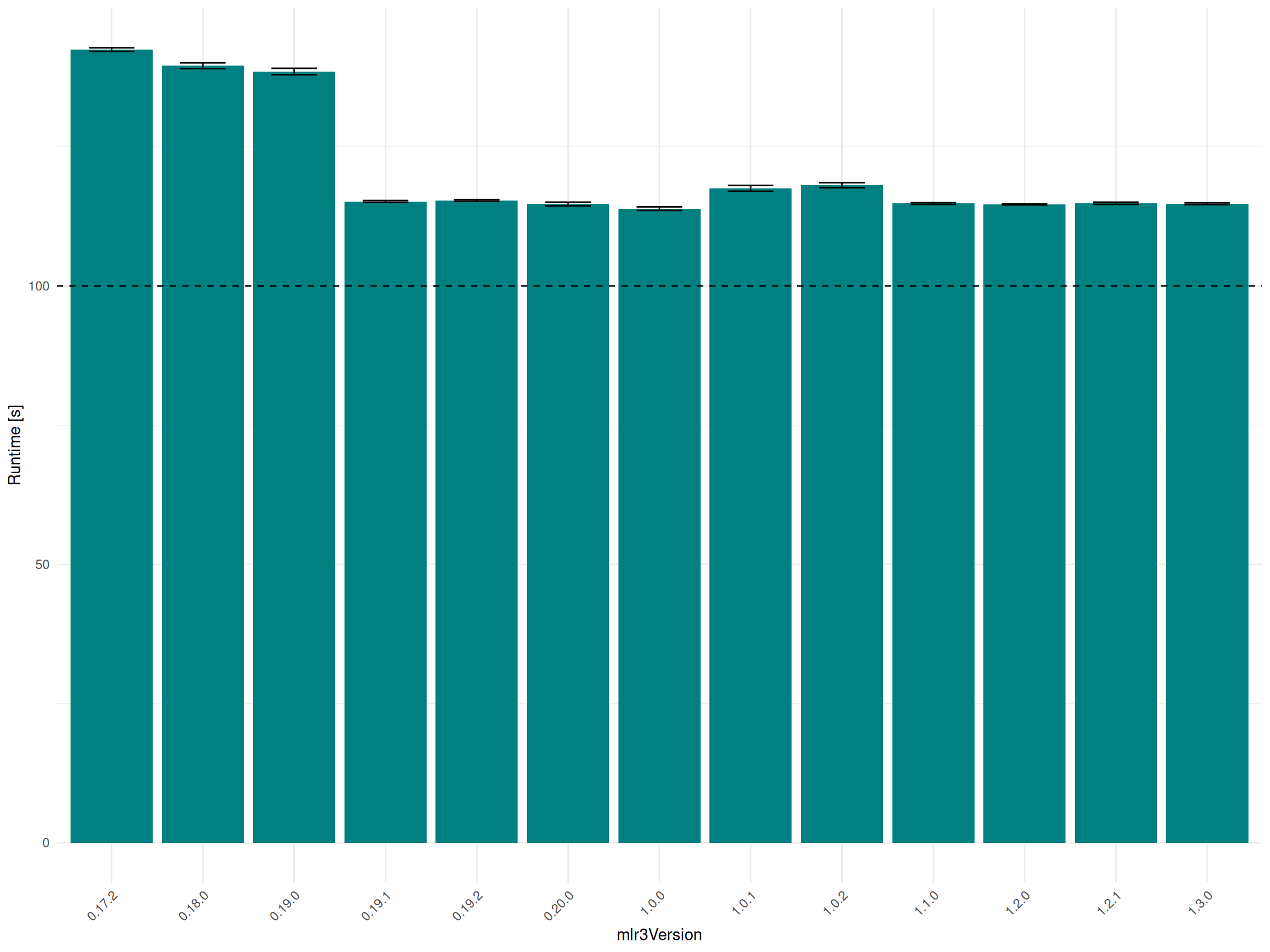

Median runtime of tune() with models trained for 100 ms depending on the mlr3tuning version. The dashed line indicates the total training time of the models. Error bars represent the median absolute deviation of the runtime.

Runtime and memory usage of tune() with models trained for 100 ms depending on the mlr3tuning version. The K factor shows how much longer the runtime is than the model training. A red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.

mlr3tuning Version	bbotk Version	mlr3 Version	paradox Version	Model Time [ms]	Total Model Time [s]	Median Runtime [s]	Median Runtime 10,000 [s]	K	Median Memory [MB]	Median Memory 10,000 [s]
0.17.2	0.7.2	0.14.1	0.11.0	100	100	140	150	1.4	519	705
0.18.0	0.7.2	0.14.1	0.11.0	100	100	140	140	1.4	518	722
0.19.0	0.7.2	0.16.1	0.11.1	100	100	140	140	1.4	562	729
0.19.1	0.7.3	0.17.0	0.11.1	100	100	120	120	1.2	511	549
0.19.2	0.7.3	0.17.0	0.11.1	100	100	120	120	1.2	511	549
0.20.0	0.8.0	0.19.0	0.11.1	100	100	110	120	1.1	424	534
1.0.0	1.0.0	0.20.0	1.0.1	100	100	110	120	1.1	434	544
1.0.1	1.1.0	0.20.2	1.0.1	100	100	120	120	1.2	434	470
1.0.2	1.1.0	0.21.0	1.0.1	100	100	120	120	1.2	362	565
1.1.0	1.2.0	0.21.1	1.0.1	100	100	110	120	1.1	362	564
1.2.0	1.3.0	0.21.1	1.0.1	100	100	110	120	1.1	364	564
1.2.1	1.4.0	0.22.0	1.0.1	100	100	110	120	1.1	363	564
1.3.0	1.5.0	0.22.1	1.0.1	100	100	110	120	1.1	364	566

Model Time 10 ms

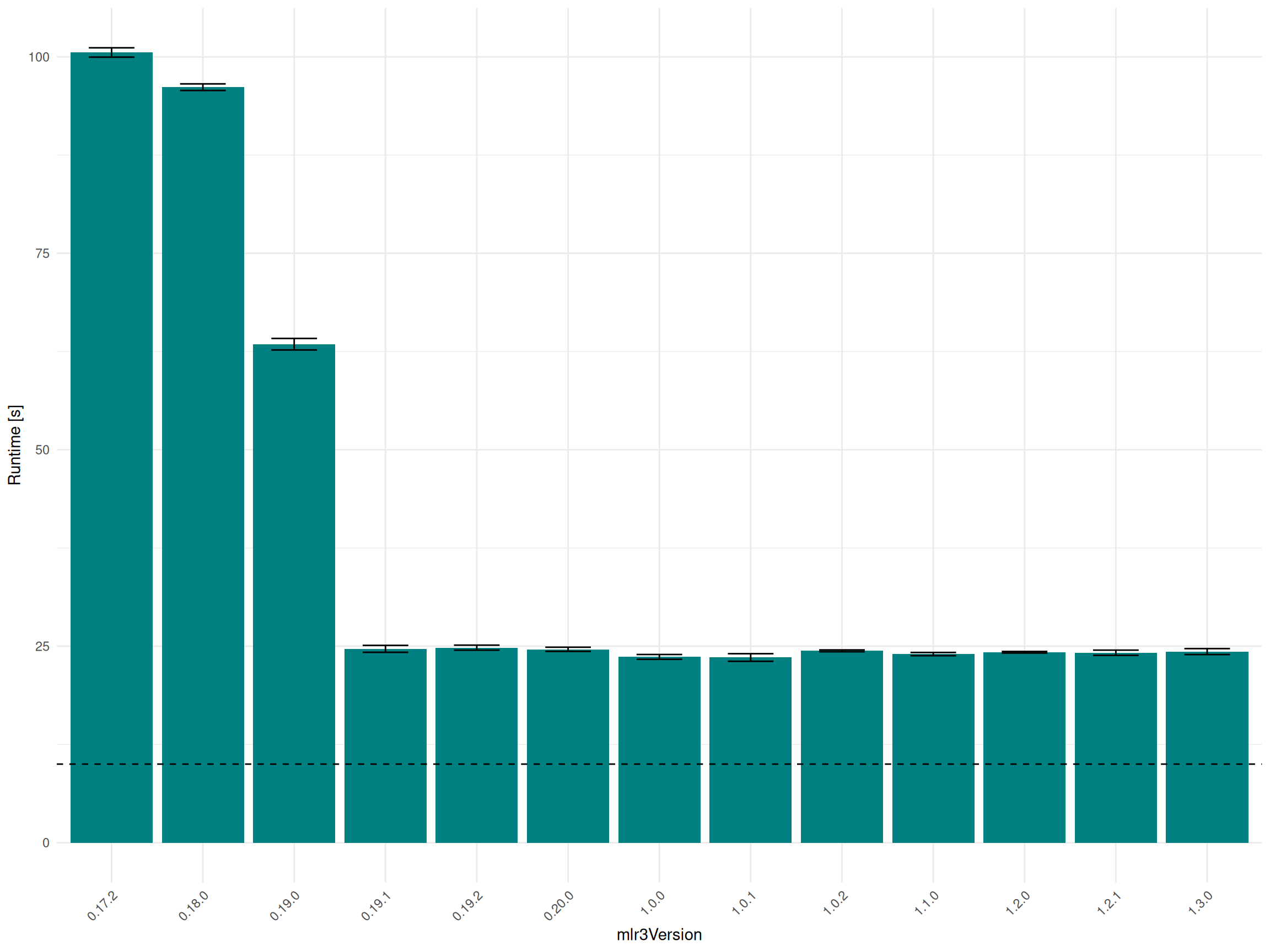

Median runtime of tune() with models trained for 10 ms depending on the mlr3tuning version. The dashed line indicates the total training time of the models. Error bars represent the median absolute deviation of the runtime.

Runtime and memory usage of tune() with models trained for 10 ms depending on the mlr3tuning version. The K factor shows how much longer the runtime is than the model training. A red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.

mlr3tuning Version	bbotk Version	mlr3 Version	paradox Version	Model Time [ms]	Total Model Time [s]	Median Runtime [s]	Median Runtime 10,000 [s]	K	Median Memory [MB]	Median Memory 10,000 [s]
0.17.2	0.7.2	0.14.1	0.11.0	10	10	100	110	10	519	705
0.18.0	0.7.2	0.14.1	0.11.0	10	10	96	98	9.6	518	722
0.19.0	0.7.2	0.16.1	0.11.1	10	10	63	53	6.3	562	729
0.19.1	0.7.3	0.17.0	0.11.1	10	10	25	25	2.5	511	549
0.19.2	0.7.3	0.17.0	0.11.1	10	10	25	25	2.5	511	549
0.20.0	0.8.0	0.19.0	0.11.1	10	10	25	24	2.5	424	534
1.0.0	1.0.0	0.20.0	1.0.1	10	10	24	24	2.4	434	544
1.0.1	1.1.0	0.20.2	1.0.1	10	10	24	23	2.4	434	470
1.0.2	1.1.0	0.21.0	1.0.1	10	10	24	25	2.4	362	565
1.1.0	1.2.0	0.21.1	1.0.1	10	10	24	26	2.4	362	564
1.2.0	1.3.0	0.21.1	1.0.1	10	10	24	26	2.4	364	564
1.2.1	1.4.0	0.22.0	1.0.1	10	10	24	26	2.4	363	564
1.3.0	1.5.0	0.22.1	1.0.1	10	10	24	26	2.4	364	566

Model Time 1 ms

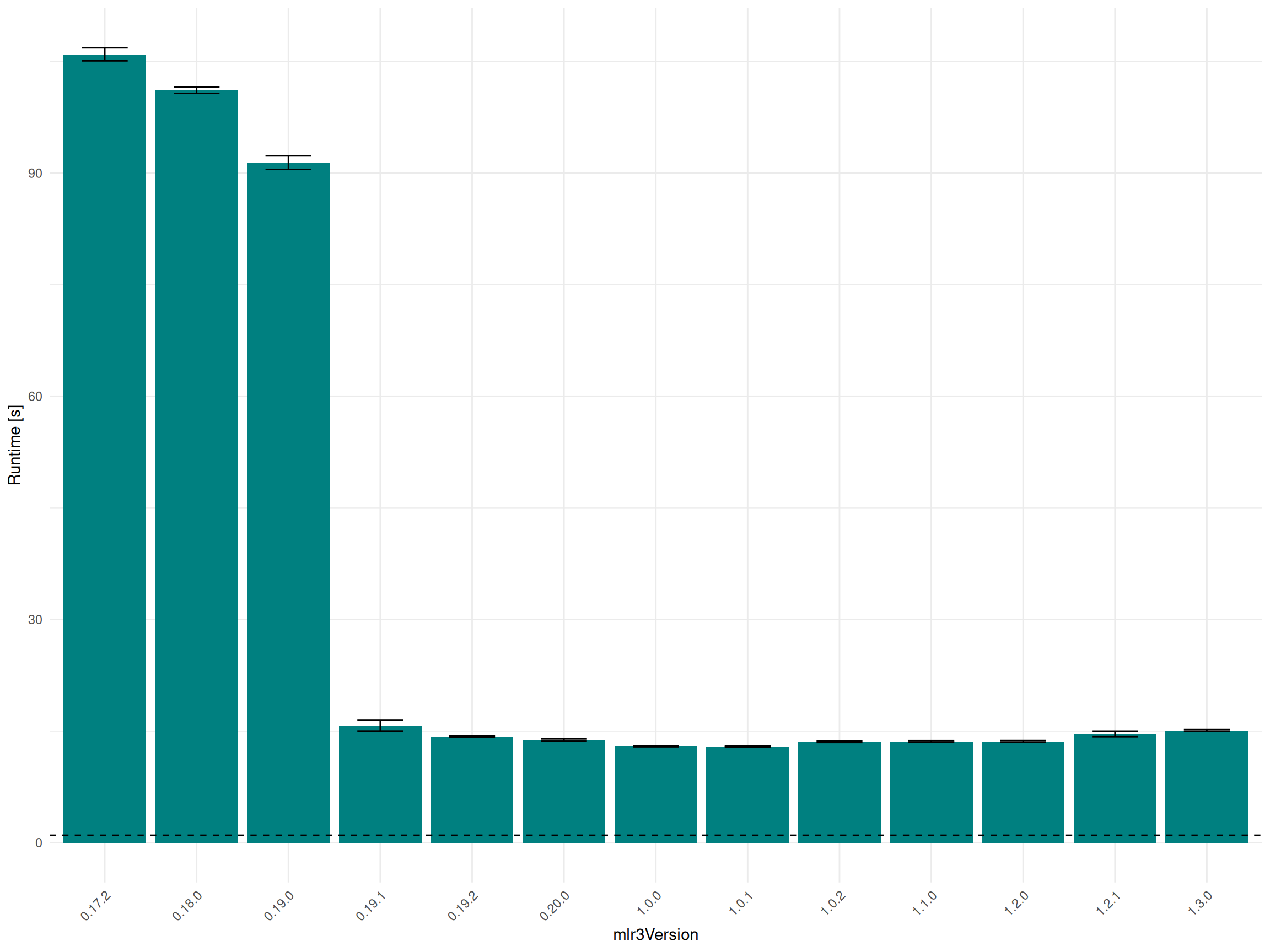

Median runtime of tune() with models trained for 1 ms depending on the mlr3tuning version. The dashed line indicates the total training time of the models. Error bars represent the median absolute deviation of the runtime.

Runtime and memory usage of tune() with models trained for 1 ms depending on the mlr3tuning version. The K factor shows how much longer the runtime is than the model training. A red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.

mlr3tuning Version	bbotk Version	mlr3 Version	paradox Version	Model Time [ms]	Total Model Time [s]	Median Runtime [s]	Median Runtime 10,000 [s]	K	Median Memory [MB]	Median Memory 10,000 [s]
0.17.2	0.7.2	0.14.1	0.11.0	1	1	110	99	110	519	705
0.18.0	0.7.2	0.14.1	0.11.0	1	1	100	78	100	518	722
0.19.0	0.7.2	0.16.1	0.11.1	1	1	91	87	91	562	729
0.19.1	0.7.3	0.17.0	0.11.1	1	1	16	17	16	511	549
0.19.2	0.7.3	0.17.0	0.11.1	1	1	14	18	14	511	549
0.20.0	0.8.0	0.19.0	0.11.1	1	1	14	17	14	424	534
1.0.0	1.0.0	0.20.0	1.0.1	1	1	13	16	13	434	544
1.0.1	1.1.0	0.20.2	1.0.1	1	1	13	17	13	434	470
1.0.2	1.1.0	0.21.0	1.0.1	1	1	14	18	14	362	565
1.1.0	1.2.0	0.21.1	1.0.1	1	1	14	17	14	362	564
1.2.0	1.3.0	0.21.1	1.0.1	1	1	14	17	14	364	564
1.2.1	1.4.0	0.22.0	1.0.1	1	1	15	17	15	363	564
1.3.0	1.5.0	0.22.1	1.0.1	1	1	15	17	15	364	566

Memory

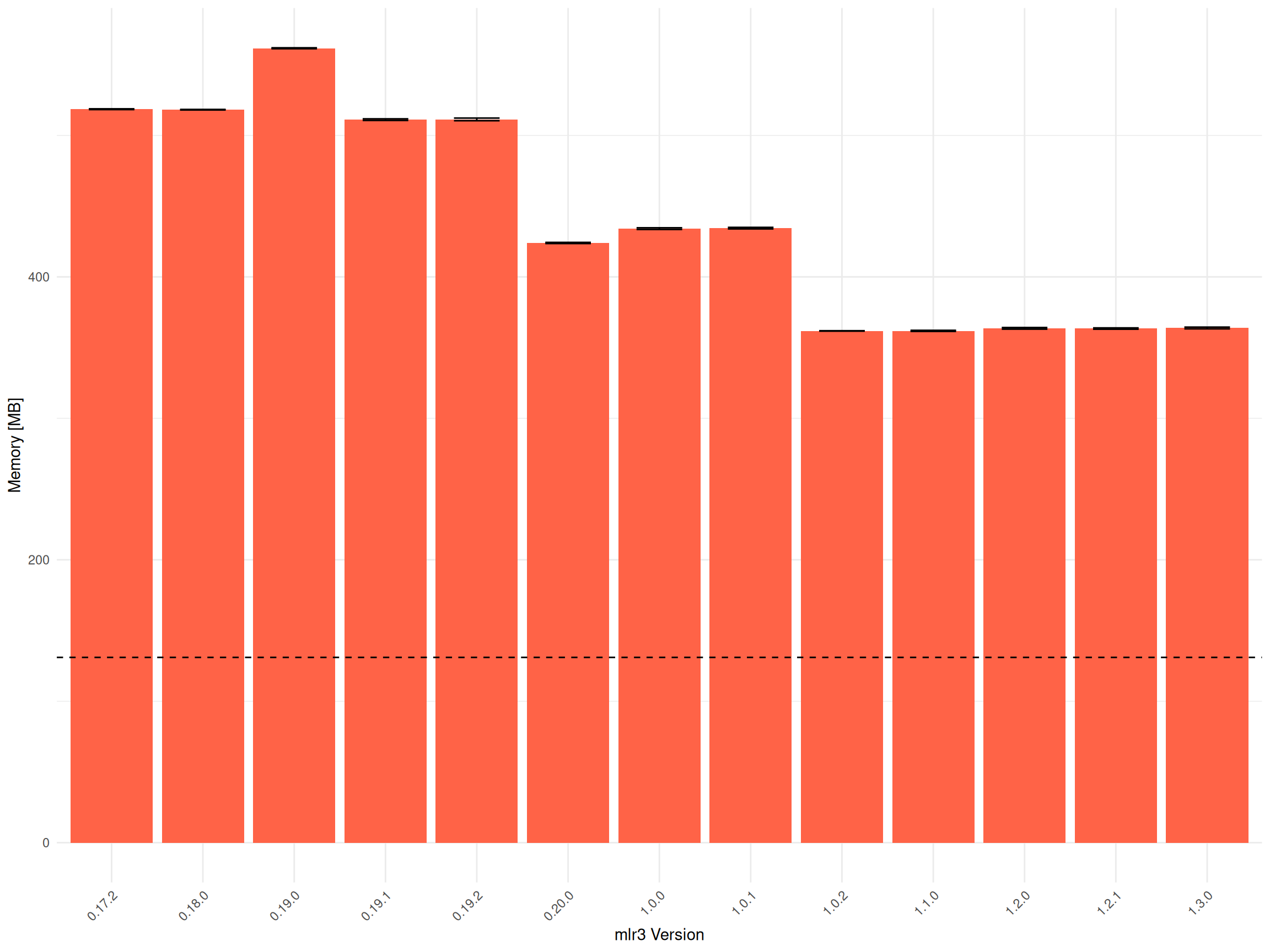

Memory usage of tune() depending on the mlr3tuning version. Error bars represent the median absolute deviation of the memory usage. The dashed line indicates the memory usage of an empty R session which is 131 MB.

Tune in Parallel

The runtime and memory usage of the tune() function is measured for different mlr3tuning versions. A random search is used with a batch size of 1000. The tuning is conducted in parallel on 10 cores with future::multisession. The models are trained for different amounts of time (1 ms, 10 ms, 100 ms, and 1000 ms) on the spam dataset with 1000 and 10,000 instances.

task = tsk("spam")

learner = lrn("classif.sleep",
  sleep_train = model_time / 2,
  sleep_predict = model_time / 2,
  x = to_tune(0, 1))

options("mlr3.exec_chunk_size" = 100)
future::plan("multisession", workers = 10)

tune(
  tune = tnr("random_search", batch_size = 1000),
  task = task,
  learner = learner,
  resampling = rsmp("holdout"),
  measure = msr("classif.ce"),
  terminator = trm("evals", n_evals = 1000),
  store_benchmark_result = FALSE,
  store_models = FALSE
)

Model Time 1000 ms

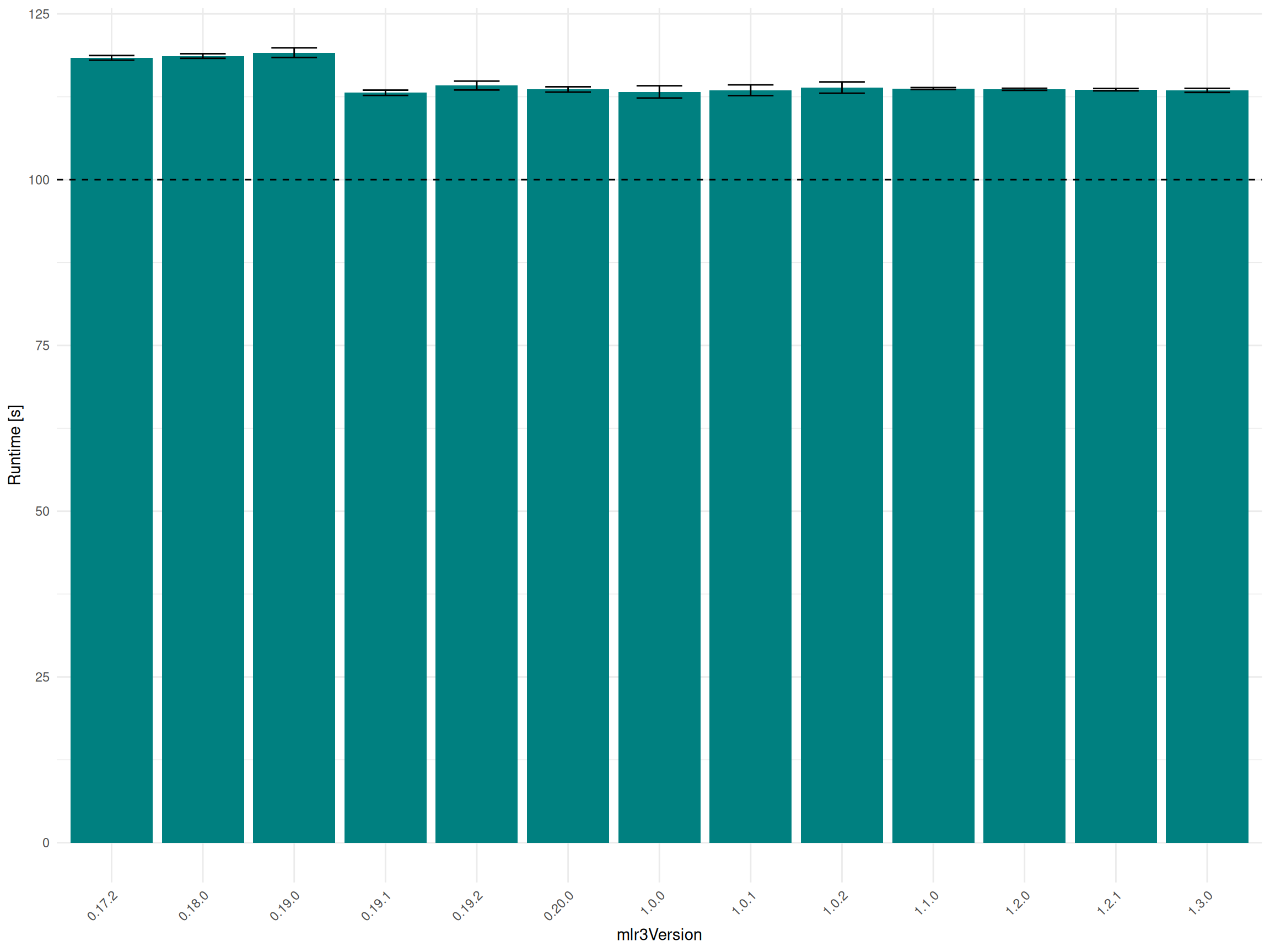

Median runtime of tune() on 10 cores with models trained for 1000 ms depending on the mlr3tuning version. The dashed line indicates the total training time of the models divided by 10. Error bars represent the median absolute deviation of the runtime.

Runtime and memory usage of tune() with models trained for 1000 ms depending on the mlr3tuning version. The K factor shows how much longer the runtime is than the model training. A red median runtime indicates that the parallelized version took longer the the sequential run. K values with a red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.

mlr3tuning Version	bbotk Version	mlr3 Version	paradox Version	Model Time [ms]	Total Model Time [s]	Median Runtime [s]	Median Runtime Sequential [s]	Median Runtime 10,000 [s]	K	Median Memory [MB]	Median Memory 10,000 [s]
0.17.2	0.7.2	0.14.1	0.11.0	1000	1000	120	1,000	120	1.2	2,785	2,606
0.18.0	0.7.2	0.14.1	0.11.0	1000	1000	120	1,000	120	1.2	2,816	2,632
0.19.0	0.7.2	0.16.1	0.11.1	1000	1000	120	1,000	120	1.2	2,816	2,632
0.19.1	0.7.3	0.17.0	0.11.1	1000	1000	110	1,000	110	1.1	1,403	2,033
0.19.2	0.7.3	0.17.0	0.11.1	1000	1000	110	1,000	110	1.1	1,403	2,079
0.20.0	0.8.0	0.19.0	0.11.1	1000	1000	110	1,000	110	1.1	1,434	1,946
1.0.0	1.0.0	0.20.0	1.0.1	1000	1000	110	1,000	110	1.1	1,454	1,935
1.0.1	1.1.0	0.20.2	1.0.1	1000	1000	110	1,000	110	1.1	1,444	1,935
1.0.2	1.1.0	0.21.0	1.0.1	1000	1000	110	1,000	110	1.1	1,444	1,946
1.1.0	1.2.0	0.21.1	1.0.1	1000	1000	110	1,000	110	1.1	1,444	1,946
1.2.0	1.3.0	0.21.1	1.0.1	1000	1000	110	1,000	110	1.1	1,444	1,946
1.2.1	1.4.0	0.22.0	1.0.1	1000	1000	110	1,000	110	1.1	1,444	1,946
1.3.0	1.5.0	0.22.1	1.0.1	1000	1000	110	1,000	110	1.1	1,444	1,946

Model Time 100 ms

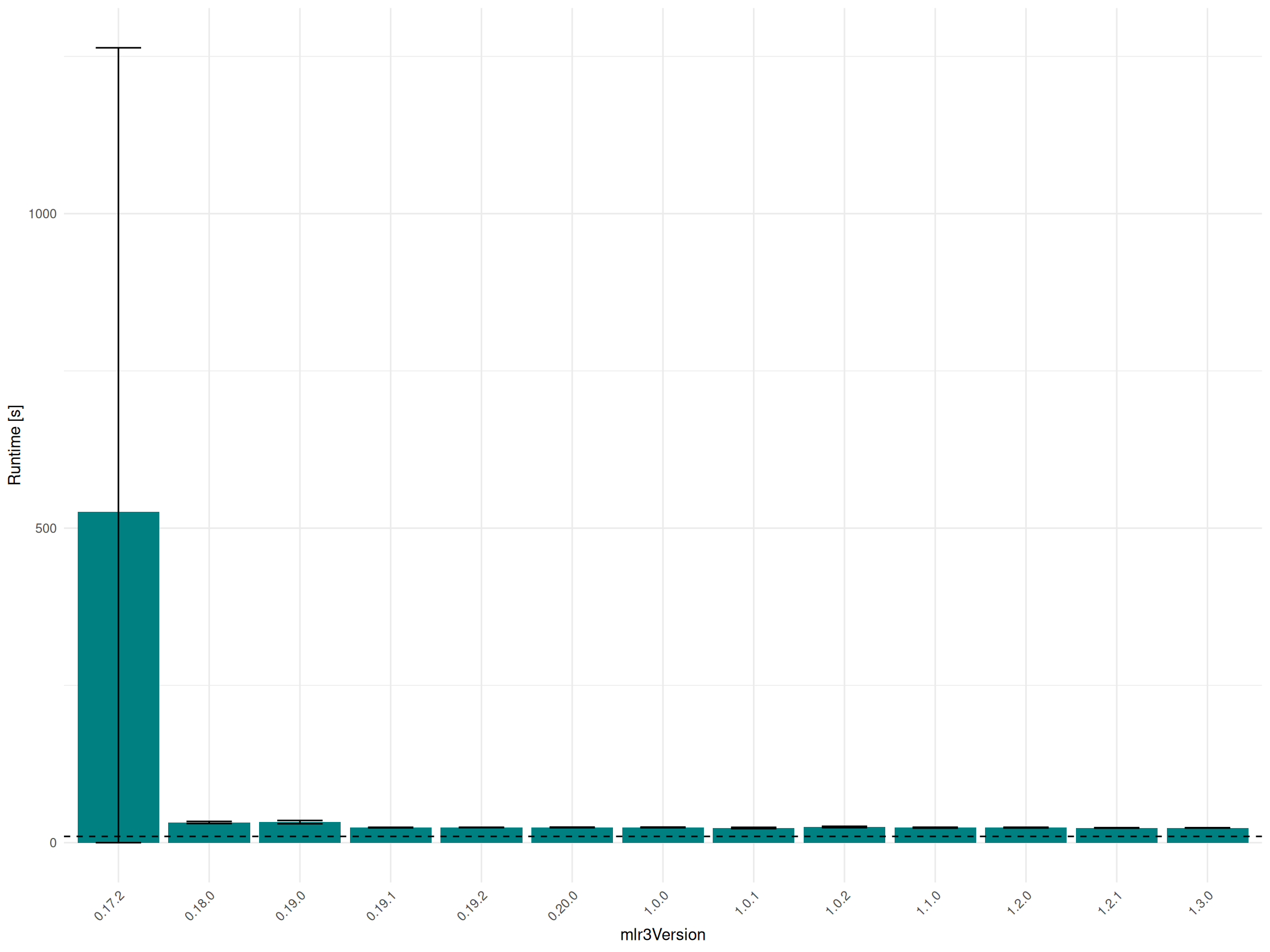

Median runtime of tune() on 10 cores with models trained for 100 ms depending on the mlr3tuning version. The dashed line indicates the total training time of the models divided by 10. Error bars represent the median absolute deviation of the runtime.

Runtime and memory usage of tune() with models trained for 100 ms depending on the mlr3tuning version. The K factor shows how much longer the runtime is than the model training. A red median runtime indicates that the parallelized version took longer the the sequential run. K values with a red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.

mlr3tuning Version	bbotk Version	mlr3 Version	paradox Version	Model Time [ms]	Total Model Time [s]	Median Runtime [s]	Median Runtime Sequential [s]	Median Runtime 10,000 [s]	K	Median Memory [MB]	Median Memory 10,000 [s]
0.17.2	0.7.2	0.14.1	0.11.0	100	100	530	140	310	53	2,785	2,606
0.18.0	0.7.2	0.14.1	0.11.0	100	100	32	140	220	3.2	2,816	2,632
0.19.0	0.7.2	0.16.1	0.11.1	100	100	33	140	120	3.3	2,816	2,632
0.19.1	0.7.3	0.17.0	0.11.1	100	100	24	120	24	2.4	1,403	2,033
0.19.2	0.7.3	0.17.0	0.11.1	100	100	24	120	180	2.4	1,403	2,079
0.20.0	0.8.0	0.19.0	0.11.1	100	100	24	110	23	2.4	1,434	1,946
1.0.0	1.0.0	0.20.0	1.0.1	100	100	24	110	24	2.4	1,454	1,935
1.0.1	1.1.0	0.20.2	1.0.1	100	100	23	120	23	2.3	1,444	1,935
1.0.2	1.1.0	0.21.0	1.0.1	100	100	25	120	24	2.5	1,444	1,946
1.1.0	1.2.0	0.21.1	1.0.1	100	100	24	110	24	2.4	1,444	1,946
1.2.0	1.3.0	0.21.1	1.0.1	100	100	24	110	24	2.4	1,444	1,946
1.2.1	1.4.0	0.22.0	1.0.1	100	100	24	110	24	2.4	1,444	1,946
1.3.0	1.5.0	0.22.1	1.0.1	100	100	24	110	23	2.4	1,444	1,946

Model Time 10 ms

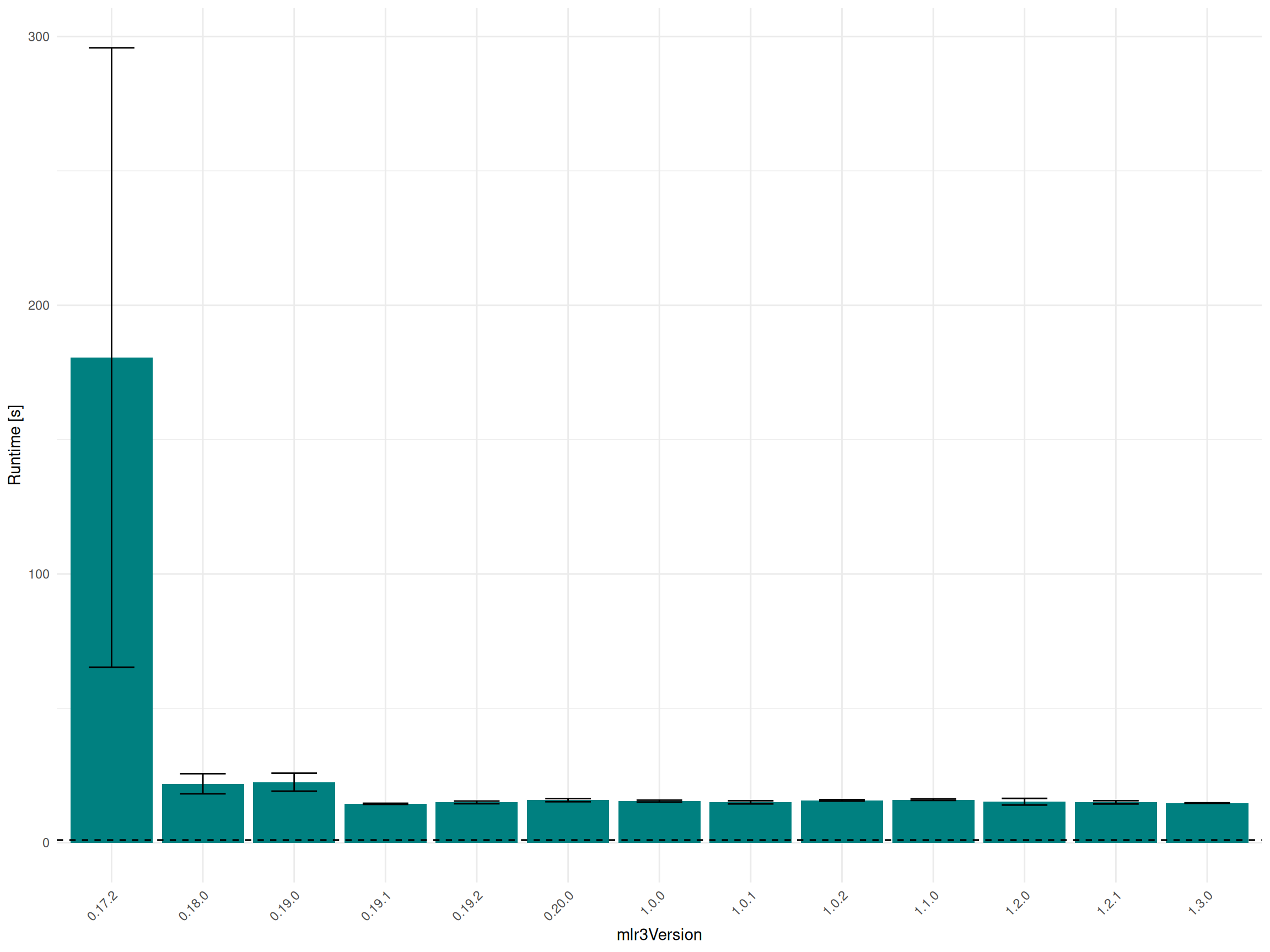

Median runtime of tune() on 10 cores with models trained for 10 ms depending on the mlr3tuning version. The dashed line indicates the total training time of the models divided by 10. Error bars represent the median absolute deviation of the runtime.

Runtime and memory usage of tune() with models trained for 10 ms depending on the mlr3tuning version. The K factor shows how much longer the runtime is than the model training. A red median runtime indicates that the parallelized version took longer the the sequential run. K values with a red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.

mlr3tuning Version	bbotk Version	mlr3 Version	paradox Version	Model Time [ms]	Total Model Time [s]	Median Runtime [s]	Median Runtime Sequential [s]	Median Runtime 10,000 [s]	K	Median Memory [MB]	Median Memory 10,000 [s]
0.17.2	0.7.2	0.14.1	0.11.0	10	10	180	100	160	180	2,785	2,606
0.18.0	0.7.2	0.14.1	0.11.0	10	10	22	96	85	22	2,816	2,632
0.19.0	0.7.2	0.16.1	0.11.1	10	10	23	63	100	23	2,816	2,632
0.19.1	0.7.3	0.17.0	0.11.1	10	10	14	25	14	14	1,403	2,033
0.19.2	0.7.3	0.17.0	0.11.1	10	10	15	25	48	15	1,403	2,079
0.20.0	0.8.0	0.19.0	0.11.1	10	10	16	25	15	16	1,434	1,946
1.0.0	1.0.0	0.20.0	1.0.1	10	10	15	24	15	15	1,454	1,935
1.0.1	1.1.0	0.20.2	1.0.1	10	10	15	24	15	15	1,444	1,935
1.0.2	1.1.0	0.21.0	1.0.1	10	10	16	24	16	16	1,444	1,946
1.1.0	1.2.0	0.21.1	1.0.1	10	10	16	24	15	16	1,444	1,946
1.2.0	1.3.0	0.21.1	1.0.1	10	10	15	24	16	15	1,444	1,946
1.2.1	1.4.0	0.22.0	1.0.1	10	10	15	24	15	15	1,444	1,946
1.3.0	1.5.0	0.22.1	1.0.1	10	10	15	24	15	15	1,444	1,946

Model Time 1 ms

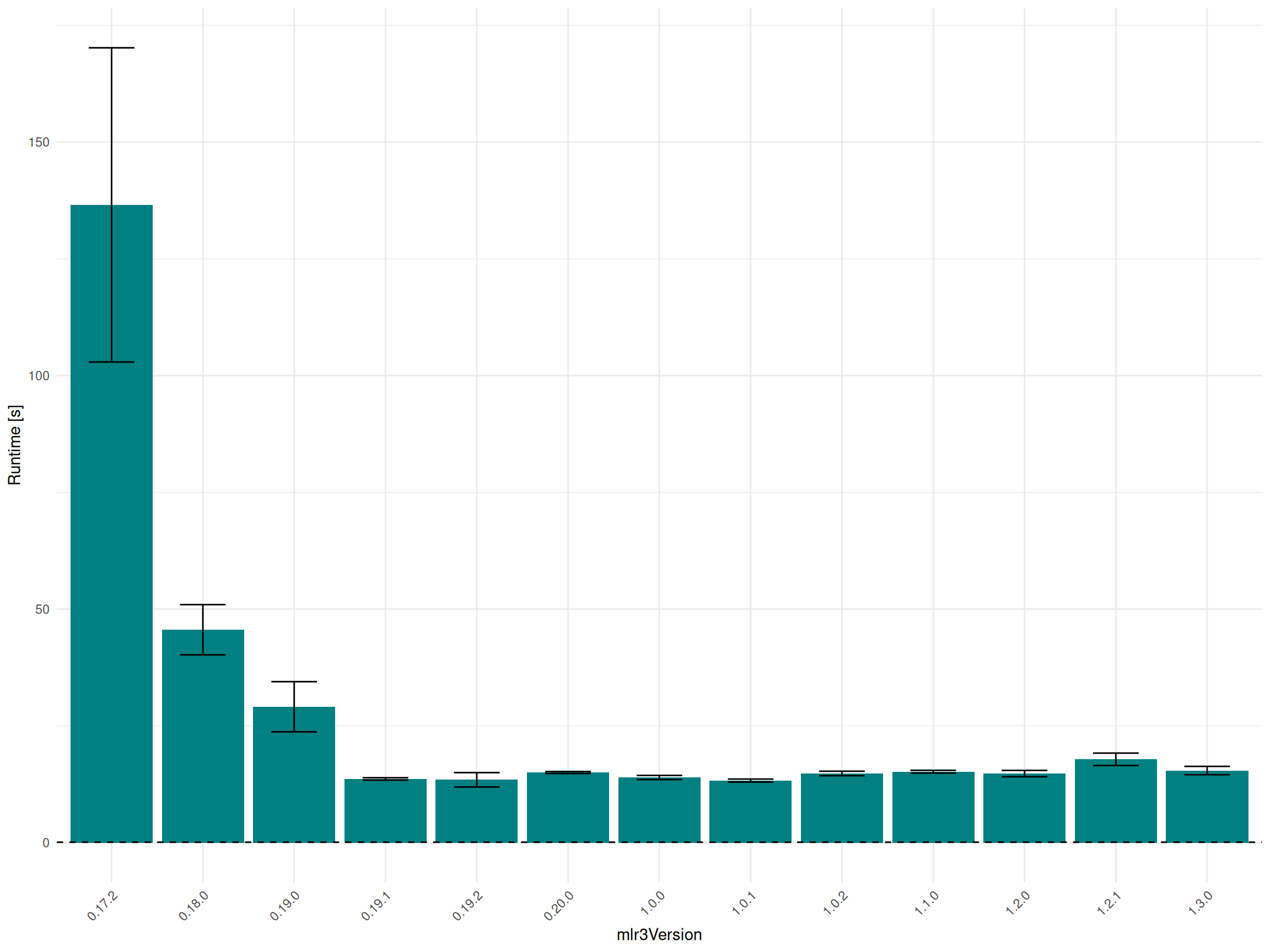

Median runtime of tune() on 10 cores with models trained for 1 ms depending on the mlr3tuning version. The dashed line indicates the total training time of the models divided by 10. Error bars represent the median absolute deviation of the runtime.

Runtime and memory usage of tune() with models trained for 1 ms depending on the mlr3tuning version. The K factor shows how much longer the runtime is than the model training. A red median runtime indicates that the parallelized version took longer the the sequential run. K values with a red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.

mlr3tuning Version	bbotk Version	mlr3 Version	paradox Version	Model Time [ms]	Total Model Time [s]	Median Runtime [s]	Median Runtime Sequential [s]	Median Runtime 10,000 [s]	K	Median Memory [MB]	Median Memory 10,000 [s]
0.17.2	0.7.2	0.14.1	0.11.0	1	1	140	110	81	1,400	2,785	2,606
0.18.0	0.7.2	0.14.1	0.11.0	1	1	46	100	74	460	2,816	2,632
0.19.0	0.7.2	0.16.1	0.11.1	1	1	29	91	64	290	2,816	2,632
0.19.1	0.7.3	0.17.0	0.11.1	1	1	14	16	14	140	1,403	2,033
0.19.2	0.7.3	0.17.0	0.11.1	1	1	13	14	14	130	1,403	2,079
0.20.0	0.8.0	0.19.0	0.11.1	1	1	15	14	15	150	1,434	1,946
1.0.0	1.0.0	0.20.0	1.0.1	1	1	14	13	15	140	1,454	1,935
1.0.1	1.1.0	0.20.2	1.0.1	1	1	13	13	15	130	1,444	1,935
1.0.2	1.1.0	0.21.0	1.0.1	1	1	15	14	15	150	1,444	1,946
1.1.0	1.2.0	0.21.1	1.0.1	1	1	15	14	15	150	1,444	1,946
1.2.0	1.3.0	0.21.1	1.0.1	1	1	15	14	15	150	1,444	1,946
1.2.1	1.4.0	0.22.0	1.0.1	1	1	18	15	14	180	1,444	1,946
1.3.0	1.5.0	0.22.1	1.0.1	1	1	15	15	14	150	1,444	1,946

Memory

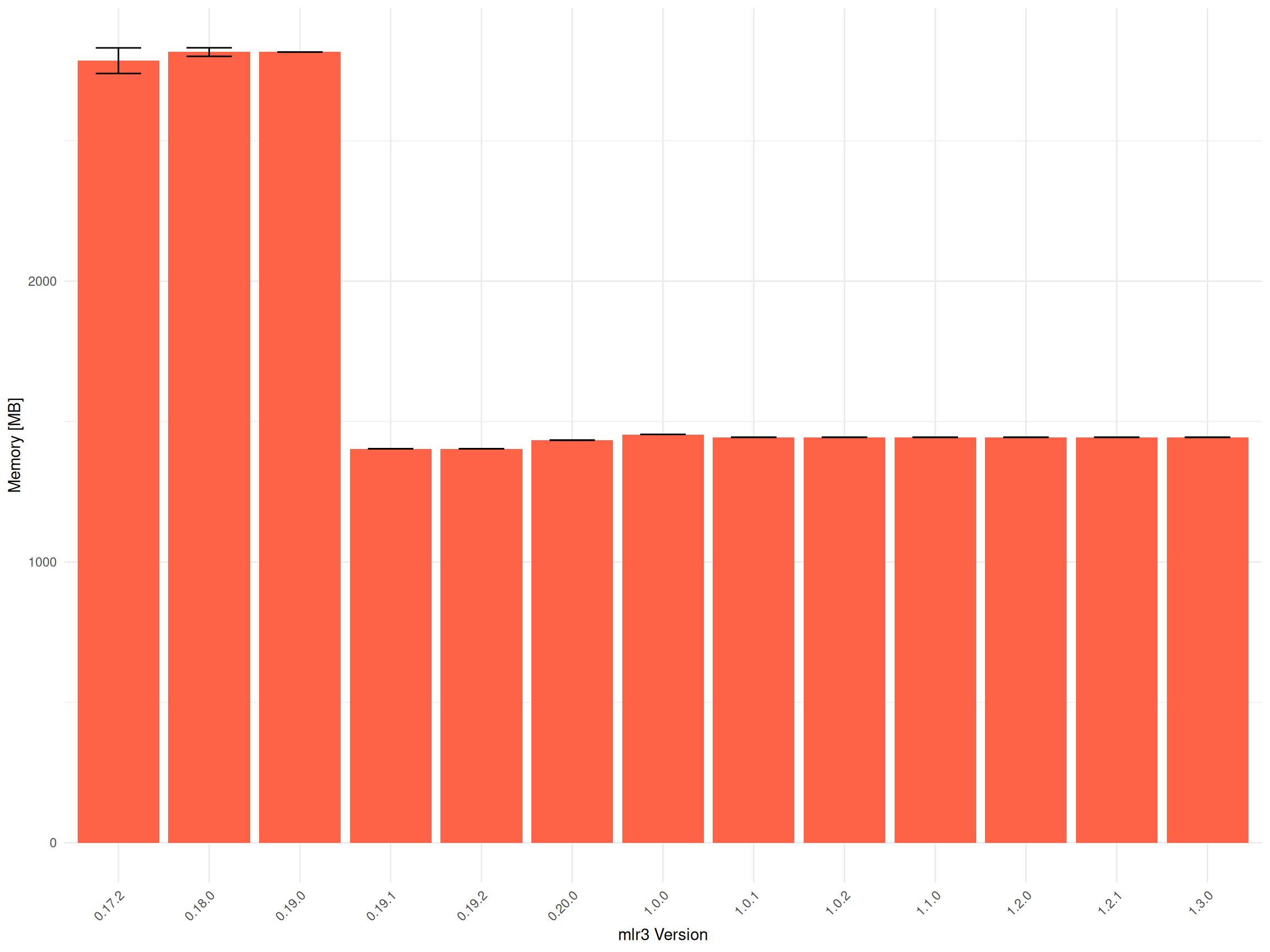

Memory usage of tune() depending on the mlr3tuning version and the number of resampling iterations. Error bars represent the median absolute deviation of the memory usage.

Nested Tuning

The runtime and memory usage of the tune_nested() function is measured for different mlr3tuning versions. The outer resampling has 10 iterations and the inner random search evaluates 1000 configurations in total. The models are trained for different amounts of time (1 ms, 10 ms, 100 ms, and 1000 ms) on the spam dataset with 1000 and 10,000 instances.

task = tsk("spam")

learner = lrn("classif.sleep",
  sleep_train = model_time / 2,
  sleep_predict = model_time / 2,
  x = to_tune(0, 1))

tune_nested(
  tuner = tnr("random_search", batch_size = 1000),
  task = task,
  learner = learner,
  inner_resampling = rsmp("holdout"),
  outer_resampling = rsmp("subsampling", repeats = 10),
  measure = msr("classif.ce"),
  terminator = trm("evals", n_evals = 1000),
  store_tune_instance = FALSE,
  store_benchmark_result = FALSE,
  store_models = FALSE
)

Model Time 1000 ms

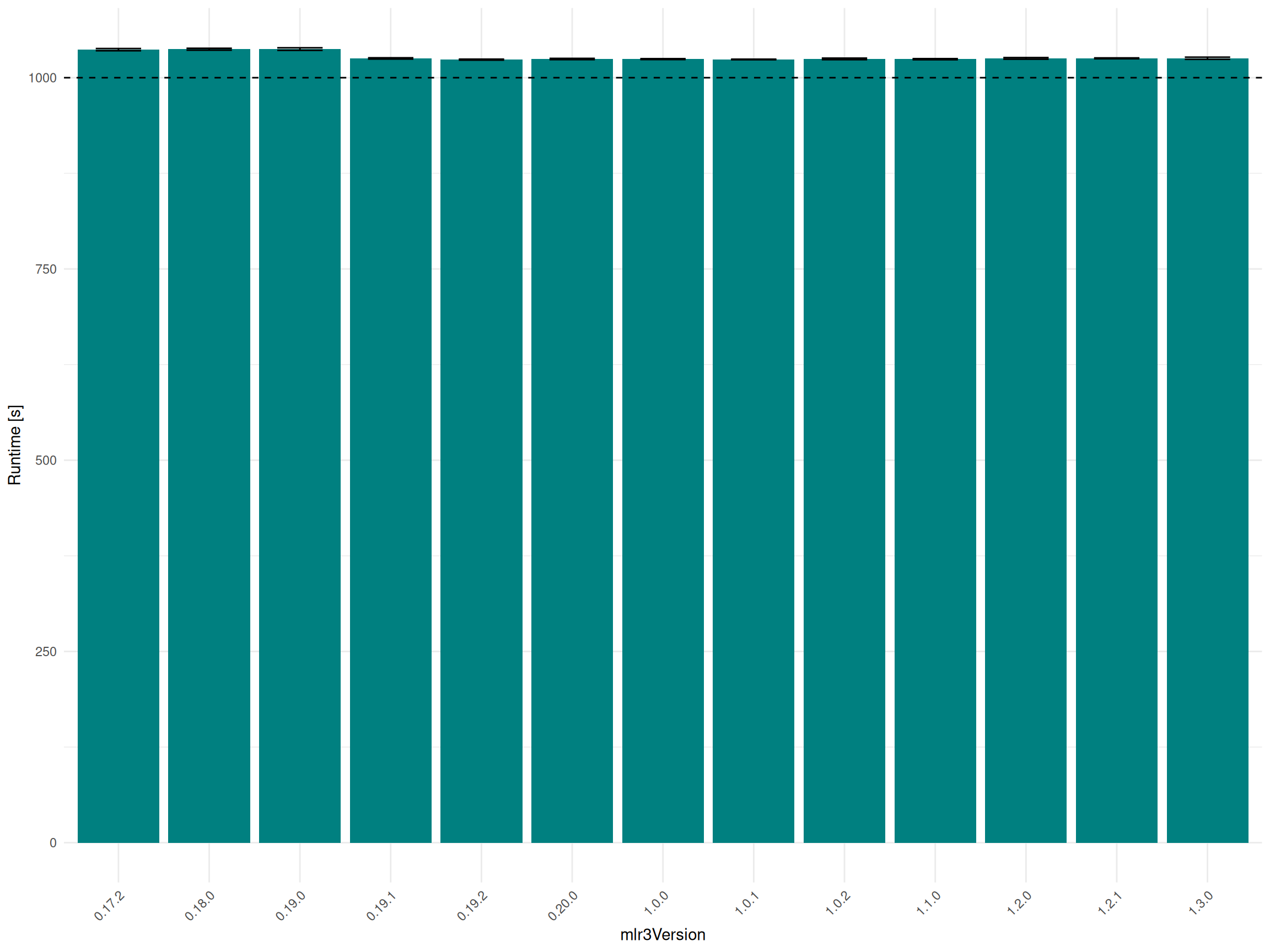

Median runtime of tune_nested() with models trained for 1000 ms depending on the mlr3tuning version. The dashed line indicates the total training time of the models. Error bars represent the median absolute deviation of the runtime.

Runtime and memory usage of tune_nested() with models trained for 1000 ms depending on the mlr3tuning version. The K factor shows how much longer the runtime is than the model training. A red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.

mlr3tuning Version	bbotk Version	mlr3 Version	paradox Version	Model Time [ms]	Total Model Time [s]	Median Runtime [s]	Median Runtime 10,000 [s]	K	Median Memory [MB]	Median Memory 10,000 [s]
0.17.2	0.7.2	0.14.1	0.11.0	1000	10000	10,000	10,000	1.0	678	779
0.18.0	0.7.2	0.14.1	0.11.0	1000	10000	10,000	10,000	1.0	679	695
0.19.0	0.7.2	0.16.1	0.11.1	1000	10000	10,000	10,000	1.0	709	756
0.19.1	0.7.3	0.17.0	0.11.1	1000	10000	10,000	10,000	1.0	548	648
0.19.2	0.7.3	0.17.0	0.11.1	1000	10000	10,000	10,000	1.0	549	655
0.20.0	0.8.0	0.19.0	0.11.1	1000	10000	10,000	10,000	1.0	629	593
1.0.0	1.0.0	0.20.0	1.0.1	1000	10000	10,000	10,000	1.0	626	549
1.0.1	1.1.0	0.20.2	1.0.1	1000	10000	10,000	10,000	1.0	619	582
1.0.2	1.1.0	0.21.0	1.0.1	1000	10000	10,000	10,000	1.0	666	573
1.1.0	1.2.0	0.21.1	1.0.1	1000	10000	10,000	10,000	1.0	666	573
1.2.0	1.3.0	0.21.1	1.0.1	1000	10000	10,000	10,000	1.0	692	559
1.2.1	1.4.0	0.22.0	1.0.1	1000	10000	10,000	10,000	1.0	681	574
1.3.0	1.5.0	0.22.1	1.0.1	1000	10000	10,000	10,000	1.0	669	572

Model Time 100 ms

Median runtime of tune_nested() with models trained for 100 ms depending on the mlr3tuning version. The dashed line indicates the total training time of the models. Error bars represent the median absolute deviation of the runtime.

Runtime and memory usage of tune_nested() with models trained for 100 ms depending on the mlr3tuning version. The K factor shows how much longer the runtime is than the model training. A red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.

mlr3tuning Version	bbotk Version	mlr3 Version	paradox Version	Model Time [ms]	Total Model Time [s]	Median Runtime [s]	Median Runtime 10,000 [s]	K	Median Memory [MB]	Median Memory 10,000 [s]
0.17.2	0.7.2	0.14.1	0.11.0	100	1000	1,800	1,800	1.8	678	779
0.18.0	0.7.2	0.14.1	0.11.0	100	1000	1,900	2,100	1.9	679	695
0.19.0	0.7.2	0.16.1	0.11.1	100	1000	2,000	1,800	2.0	709	756
0.19.1	0.7.3	0.17.0	0.11.1	100	1000	1,200	1,300	1.2	548	648
0.19.2	0.7.3	0.17.0	0.11.1	100	1000	1,200	1,200	1.2	549	655
0.20.0	0.8.0	0.19.0	0.11.1	100	1000	1,200	1,200	1.2	629	593
1.0.0	1.0.0	0.20.0	1.0.1	100	1000	1,200	1,200	1.2	626	549
1.0.1	1.1.0	0.20.2	1.0.1	100	1000	1,200	1,200	1.2	619	582
1.0.2	1.1.0	0.21.0	1.0.1	100	1000	1,200	1,200	1.2	666	573
1.1.0	1.2.0	0.21.1	1.0.1	100	1000	1,200	1,200	1.2	666	573
1.2.0	1.3.0	0.21.1	1.0.1	100	1000	1,200	1,200	1.2	692	559
1.2.1	1.4.0	0.22.0	1.0.1	100	1000	1,200	1,300	1.2	681	574
1.3.0	1.5.0	0.22.1	1.0.1	100	1000	1,200	1,200	1.2	669	572

Model Time 10 ms

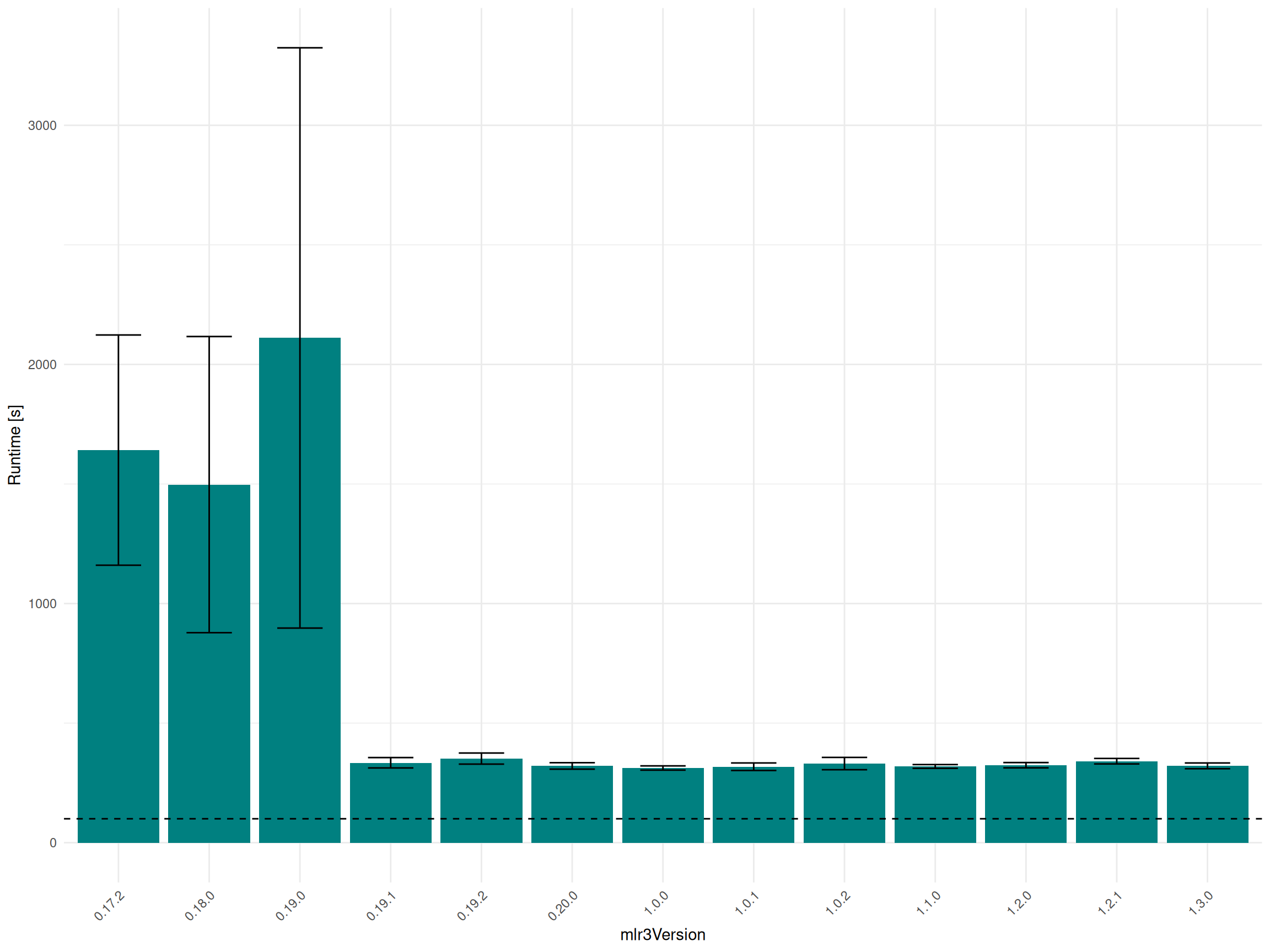

Median runtime of tune_nested() with models trained for 10 ms depending on the mlr3tuning version. The dashed line indicates the total training time of the models. Error bars represent the median absolute deviation of the runtime.

Runtime and memory usage of tune_nested() with models trained for 10 ms depending on the mlr3tuning version. The K factor shows how much longer the runtime is than the model training. A red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.

mlr3tuning Version	bbotk Version	mlr3 Version	paradox Version	Model Time [ms]	Total Model Time [s]	Median Runtime [s]	Median Runtime 10,000 [s]	K	Median Memory [MB]	Median Memory 10,000 [s]
0.17.2	0.7.2	0.14.1	0.11.0	10	100	1,600	2,200	16	678	779
0.18.0	0.7.2	0.14.1	0.11.0	10	100	1,500	2,200	15	679	695
0.19.0	0.7.2	0.16.1	0.11.1	10	100	2,100	1,200	21	709	756
0.19.1	0.7.3	0.17.0	0.11.1	10	100	330	370	3.3	548	648
0.19.2	0.7.3	0.17.0	0.11.1	10	100	350	370	3.5	549	655
0.20.0	0.8.0	0.19.0	0.11.1	10	100	320	360	3.2	629	593
1.0.0	1.0.0	0.20.0	1.0.1	10	100	310	340	3.1	626	549
1.0.1	1.1.0	0.20.2	1.0.1	10	100	320	330	3.2	619	582
1.0.2	1.1.0	0.21.0	1.0.1	10	100	330	340	3.3	666	573
1.1.0	1.2.0	0.21.1	1.0.1	10	100	320	340	3.2	666	573
1.2.0	1.3.0	0.21.1	1.0.1	10	100	320	360	3.2	692	559
1.2.1	1.4.0	0.22.0	1.0.1	10	100	340	350	3.4	681	574
1.3.0	1.5.0	0.22.1	1.0.1	10	100	320	350	3.2	669	572

Model Time 1 ms

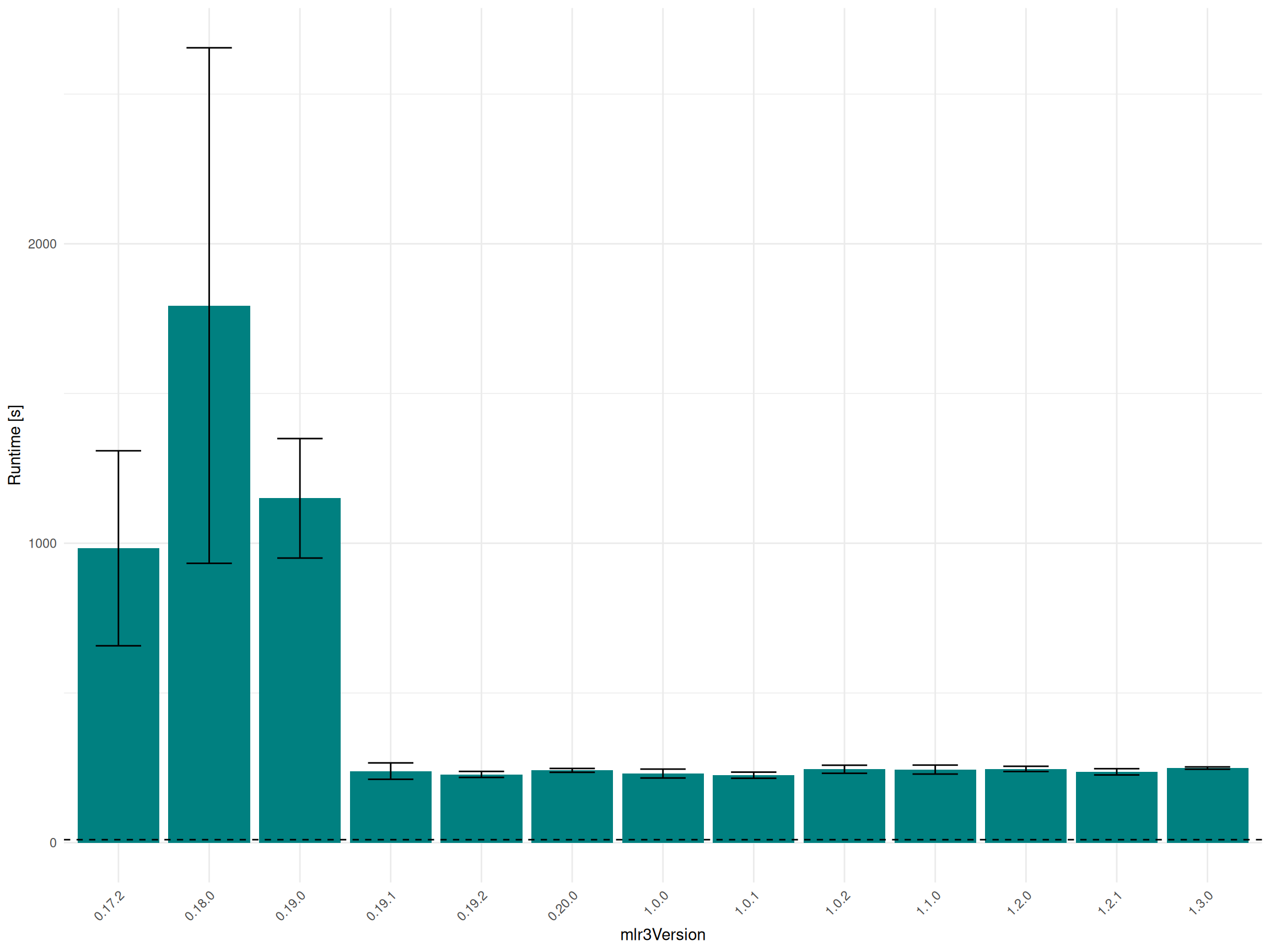

Median runtime of tune_nested() with models trained for 1 ms depending on the mlr3tuning version. The dashed line indicates the total training time of the models. Error bars represent the median absolute deviation of the runtime.

Runtime and memory usage of tune_nested() with models trained for 1 ms depending on the mlr3tuning version. The K factor shows how much longer the runtime is than the model training. A red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.

mlr3tuning Version	bbotk Version	mlr3 Version	paradox Version	Model Time [ms]	Total Model Time [s]	Median Runtime [s]	Median Runtime 10,000 [s]	K	Median Memory [MB]	Median Memory 10,000 [s]
0.17.2	0.7.2	0.14.1	0.11.0	1	10	980	1,700	98	678	779
0.18.0	0.7.2	0.14.1	0.11.0	1	10	1,800	2,300	180	679	695
0.19.0	0.7.2	0.16.1	0.11.1	1	10	1,200	1,700	120	709	756
0.19.1	0.7.3	0.17.0	0.11.1	1	10	240	280	24	548	648
0.19.2	0.7.3	0.17.0	0.11.1	1	10	230	270	23	549	655
0.20.0	0.8.0	0.19.0	0.11.1	1	10	240	260	24	629	593
1.0.0	1.0.0	0.20.0	1.0.1	1	10	230	250	23	626	549
1.0.1	1.1.0	0.20.2	1.0.1	1	10	230	260	23	619	582
1.0.2	1.1.0	0.21.0	1.0.1	1	10	250	250	25	666	573
1.1.0	1.2.0	0.21.1	1.0.1	1	10	240	250	24	666	573
1.2.0	1.3.0	0.21.1	1.0.1	1	10	250	250	25	692	559
1.2.1	1.4.0	0.22.0	1.0.1	1	10	240	280	24	681	574
1.3.0	1.5.0	0.22.1	1.0.1	1	10	250	260	25	669	572

Memory

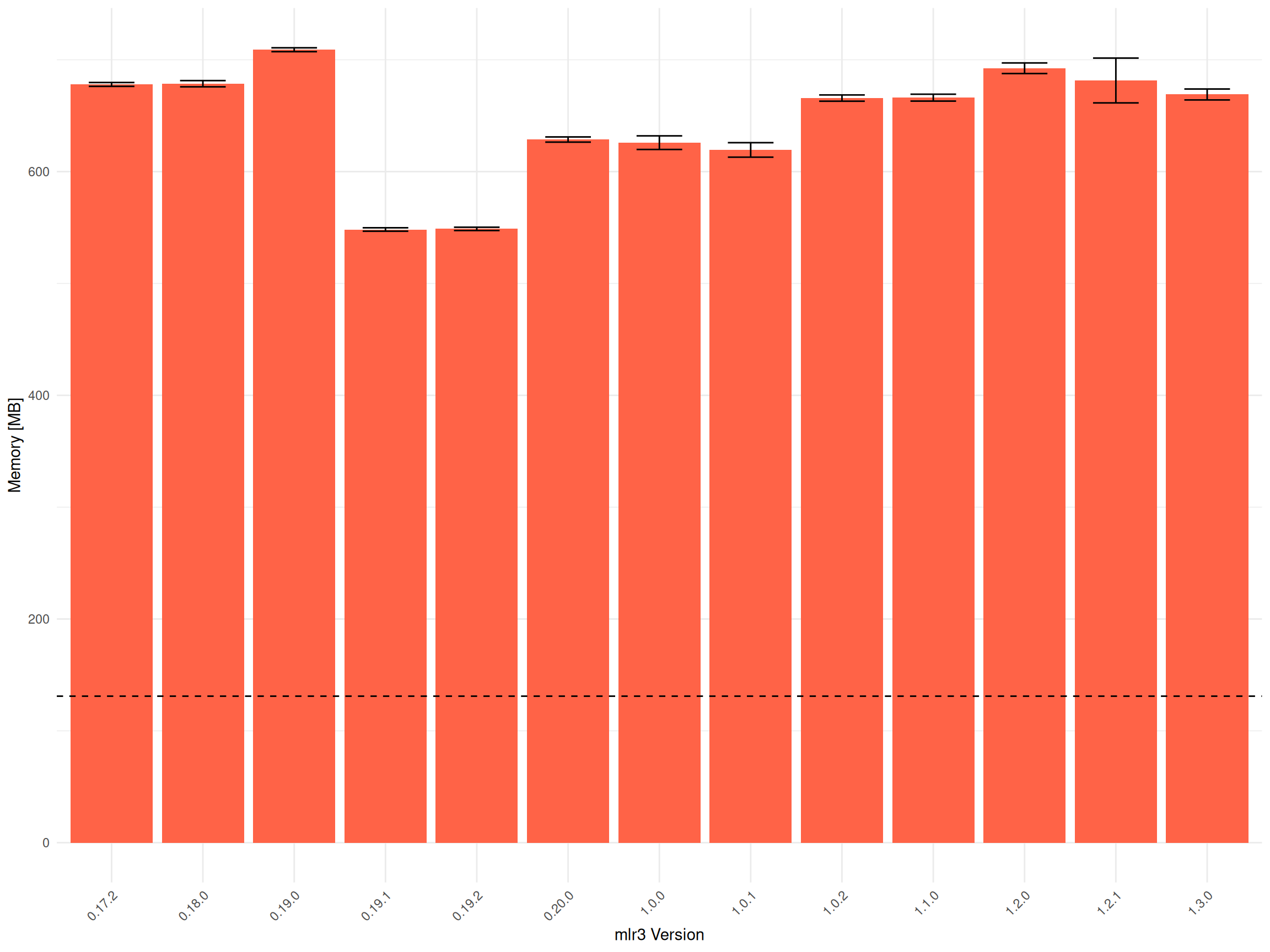

Memory usage of tune_nested() depending on the mlr3tuning version and the number of resampling iterations. Error bars represent the median absolute deviation of the memory usage. The dashed line indicates the memory usage of an empty R session which is 131 MB.

Nested Tuning in Parallel

The runtime and memory usage of the tune_nested() function is measured for different mlr3tuning versions. The outer resampling has 10 iterations and the inner random search evaluates 1000 configurations in total. The outer resampling is run in parallel on 10 cores with future::multisession. The models are trained for different amounts of time (1 ms, 10 ms, 100 ms, and 1000 ms) on the spam dataset with 1000 and 10,000 instances.

task = tsk("spam")

learner = lrn("classif.sleep",
  sleep_train = model_time / 2,
  sleep_predict = model_time / 2,
  x = to_tune(0, 1))

future::plan("multisession", workers = 10)

tune_nested(
  tuner = tnr("random_search", batch_size = 1000),
  task = task,
  learner = learner,
  inner_resampling = rsmp("holdout"),
  outer_resampling = rsmp("subsampling", repeats = 10),
  measure = msr("classif.ce"),
  terminator = trm("evals", n_evals = 1000),
  store_tune_instance = FALSE,
  store_benchmark_result = FALSE,
  store_models = FALSE
)

Model Time 1000 ms

Median runtime of tune_nested() on 10 cores with models trained for 1000 ms depending on the mlr3tuning version. The dashed line indicates the total training time of the models. Error bars represent the median absolute deviation of the runtime.

Runtime and memory usage of tune_nested() on 10 cores with models trained for 1000 ms depending on the mlr3tuning version. The K factor shows how much longer the runtime is than the model training. A red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.

mlr3tuning Version	bbotk Version	mlr3 Version	paradox Version	Model Time [ms]	Total Model Time [s]	Median Runtime [s]	Median Runtime Sequential [s]	Median Runtime 10,000 [s]	K	Median Memory [MB]	Median Memory 10,000 [s]
0.17.2	0.7.2	0.14.1	0.11.0	1000	10000	1,000	10,000	1,000	1.0	5,028	5,335
0.18.0	0.7.2	0.14.1	0.11.0	1000	10000	1,000	10,000	1,000	1.0	4,895	5,325
0.19.0	0.7.2	0.16.1	0.11.1	1000	10000	1,000	10,000	1,000	1.0	4,864	5,315
0.19.1	0.7.3	0.17.0	0.11.1	1000	10000	1,000	10,000	1,000	1.0	3,789	4,178
0.19.2	0.7.3	0.17.0	0.11.1	1000	10000	1,000	10,000	1,000	1.0	3,789	4,275
0.20.0	0.8.0	0.19.0	0.11.1	1000	10000	1,000	10,000	1,000	1.0	3,543	3,860
1.0.0	1.0.0	0.20.0	1.0.1	1000	10000	1,000	10,000	1,000	1.0	3,512	3,820
1.0.1	1.1.0	0.20.2	1.0.1	1000	10000	1,000	10,000	1,000	1.0	3,564	3,850
1.0.2	1.1.0	0.21.0	1.0.1	1000	10000	1,000	10,000	1,000	1.0	3,604	3,901
1.1.0	1.2.0	0.21.1	1.0.1	1000	10000	1,000	10,000	1,000	1.0	3,604	3,891
1.2.0	1.3.0	0.21.1	1.0.1	1000	10000	1,000	10,000	1,000	1.0	3,625	3,922
1.2.1	1.4.0	0.22.0	1.0.1	1000	10000	1,000	10,000	1,000	1.0	3,604	3,912
1.3.0	1.5.0	0.22.1	1.0.1	1000	10000	1,000	10,000	1,000	1.0	3,615	3,922

Model Time 100 ms

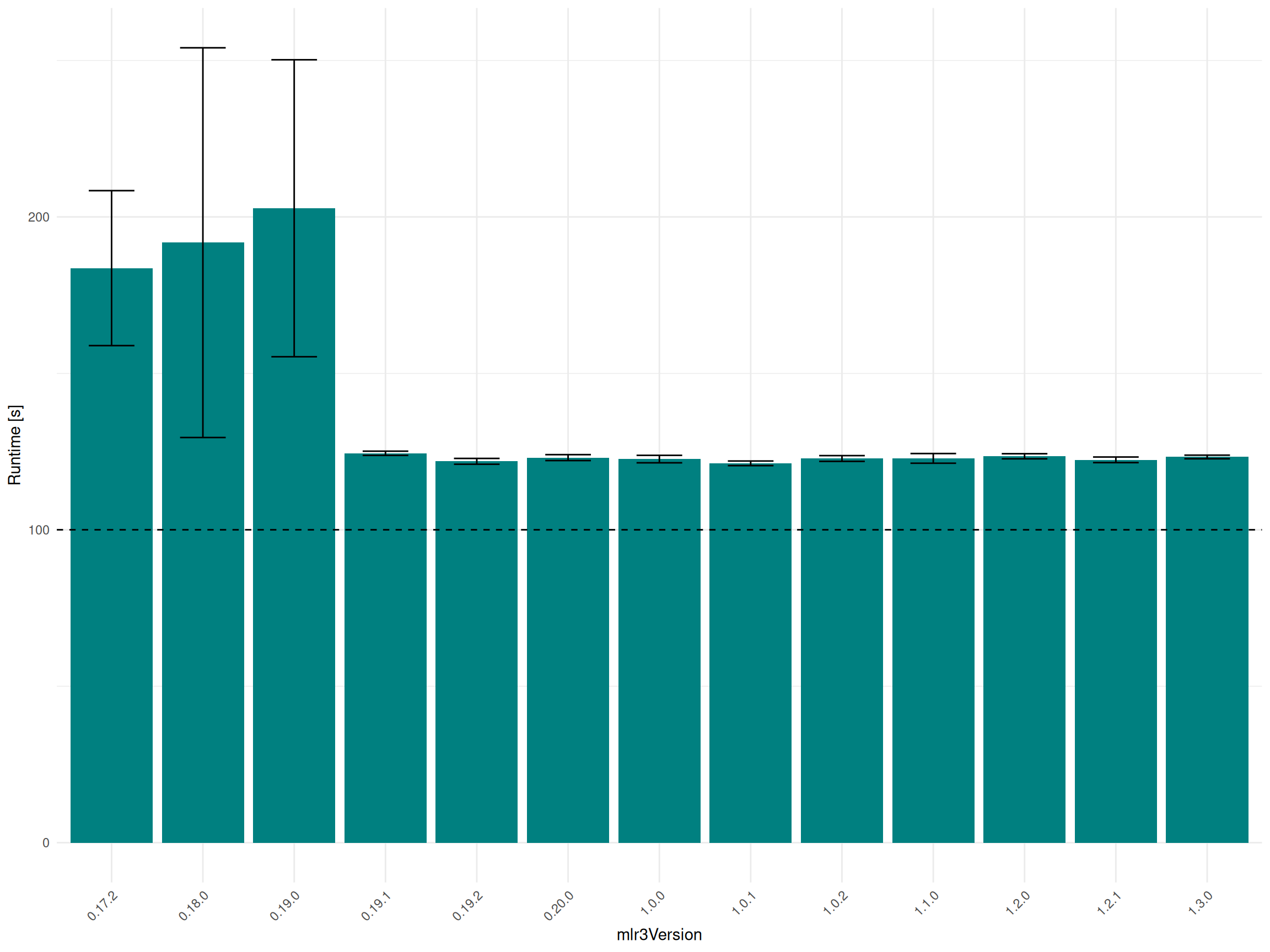

Median runtime of tune_nested() on 10 cores with models trained for 100 ms depending on the mlr3tuning version. The dashed line indicates the total training time of the models. Error bars represent the median absolute deviation of the runtime.

Runtime and memory usage of tune_nested() on 10 cores with models trained for 100 ms depending on the mlr3tuning version. The K factor shows how much longer the runtime is than the model training. A red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.

mlr3tuning Version	bbotk Version	mlr3 Version	paradox Version	Model Time [ms]	Total Model Time [s]	Median Runtime [s]	Median Runtime Sequential [s]	Median Runtime 10,000 [s]	K	Median Memory [MB]	Median Memory 10,000 [s]
0.17.2	0.7.2	0.14.1	0.11.0	100	1000	180	1,800	180	1.8	5,028	5,335
0.18.0	0.7.2	0.14.1	0.11.0	100	1000	190	1,900	210	1.9	4,895	5,325
0.19.0	0.7.2	0.16.1	0.11.1	100	1000	200	2,000	180	2.0	4,864	5,315
0.19.1	0.7.3	0.17.0	0.11.1	100	1000	120	1,200	130	1.2	3,789	4,178
0.19.2	0.7.3	0.17.0	0.11.1	100	1000	120	1,200	120	1.2	3,789	4,275
0.20.0	0.8.0	0.19.0	0.11.1	100	1000	120	1,200	120	1.2	3,543	3,860
1.0.0	1.0.0	0.20.0	1.0.1	100	1000	120	1,200	120	1.2	3,512	3,820
1.0.1	1.1.0	0.20.2	1.0.1	100	1000	120	1,200	120	1.2	3,564	3,850
1.0.2	1.1.0	0.21.0	1.0.1	100	1000	120	1,200	120	1.2	3,604	3,901
1.1.0	1.2.0	0.21.1	1.0.1	100	1000	120	1,200	120	1.2	3,604	3,891
1.2.0	1.3.0	0.21.1	1.0.1	100	1000	120	1,200	120	1.2	3,625	3,922
1.2.1	1.4.0	0.22.0	1.0.1	100	1000	120	1,200	130	1.2	3,604	3,912
1.3.0	1.5.0	0.22.1	1.0.1	100	1000	120	1,200	120	1.2	3,615	3,922

Model Time 10 ms

Median runtime of tune_nested() on 10 cores with models trained for 10 ms depending on the mlr3tuning version. The dashed line indicates the total training time of the models. Error bars represent the median absolute deviation of the runtime.

Runtime and memory usage of tune_nested() on 10 cores with models trained for 10 ms depending on the mlr3tuning version. The K factor shows how much longer the runtime is than the model training. A red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.

mlr3tuning Version	bbotk Version	mlr3 Version	paradox Version	Model Time [ms]	Total Model Time [s]	Median Runtime [s]	Median Runtime Sequential [s]	Median Runtime 10,000 [s]	K	Median Memory [MB]	Median Memory 10,000 [s]
0.17.2	0.7.2	0.14.1	0.11.0	10	100	160	1,600	220	16	5,028	5,335
0.18.0	0.7.2	0.14.1	0.11.0	10	100	150	1,500	220	15	4,895	5,325
0.19.0	0.7.2	0.16.1	0.11.1	10	100	210	2,100	120	21	4,864	5,315
0.19.1	0.7.3	0.17.0	0.11.1	10	100	33	330	37	3.3	3,789	4,178
0.19.2	0.7.3	0.17.0	0.11.1	10	100	35	350	37	3.5	3,789	4,275
0.20.0	0.8.0	0.19.0	0.11.1	10	100	32	320	36	3.2	3,543	3,860
1.0.0	1.0.0	0.20.0	1.0.1	10	100	31	310	34	3.1	3,512	3,820
1.0.1	1.1.0	0.20.2	1.0.1	10	100	32	320	33	3.2	3,564	3,850
1.0.2	1.1.0	0.21.0	1.0.1	10	100	33	330	34	3.3	3,604	3,901
1.1.0	1.2.0	0.21.1	1.0.1	10	100	32	320	34	3.2	3,604	3,891
1.2.0	1.3.0	0.21.1	1.0.1	10	100	32	320	36	3.2	3,625	3,922
1.2.1	1.4.0	0.22.0	1.0.1	10	100	34	340	35	3.4	3,604	3,912
1.3.0	1.5.0	0.22.1	1.0.1	10	100	32	320	35	3.2	3,615	3,922

Model Time 1 ms

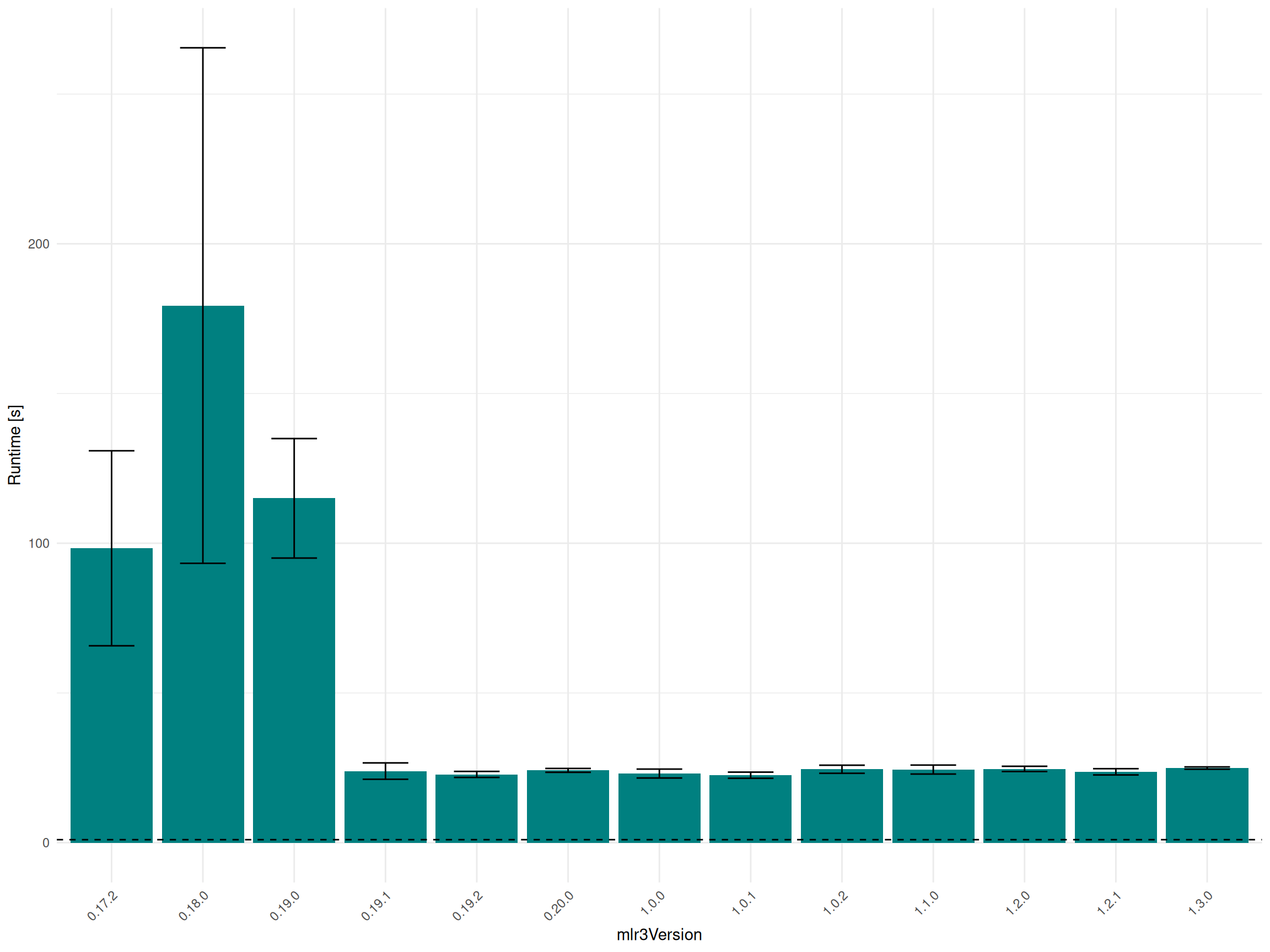

Median runtime of tune_nested() on 10 cores with models trained for 1 ms depending on the mlr3tuning version. The dashed line indicates the total training time of the models. Error bars represent the median absolute deviation of the runtime.

Runtime and memory usage of tune_nested() on 10 cores with models trained for 1 ms depending on the mlr3tuning version. The K factor shows how much longer the runtime is than the model training. A red background indicates that the runtime is 3 times larger than the total training time of the models. The table includes runtime and memory usage for tasks of size 1000 and 10,000.

mlr3tuning Version	bbotk Version	mlr3 Version	paradox Version	Model Time [ms]	Total Model Time [s]	Median Runtime [s]	Median Runtime Sequential [s]	Median Runtime 10,000 [s]	K	Median Memory [MB]	Median Memory 10,000 [s]
0.17.2	0.7.2	0.14.1	0.11.0	1	10	98	980	170	98	5,028	5,335
0.18.0	0.7.2	0.14.1	0.11.0	1	10	180	1,800	230	180	4,895	5,325
0.19.0	0.7.2	0.16.1	0.11.1	1	10	120	1,200	170	120	4,864	5,315
0.19.1	0.7.3	0.17.0	0.11.1	1	10	24	240	28	24	3,789	4,178
0.19.2	0.7.3	0.17.0	0.11.1	1	10	23	230	27	23	3,789	4,275
0.20.0	0.8.0	0.19.0	0.11.1	1	10	24	240	26	24	3,543	3,860
1.0.0	1.0.0	0.20.0	1.0.1	1	10	23	230	25	23	3,512	3,820
1.0.1	1.1.0	0.20.2	1.0.1	1	10	23	230	26	23	3,564	3,850
1.0.2	1.1.0	0.21.0	1.0.1	1	10	25	250	25	25	3,604	3,901
1.1.0	1.2.0	0.21.1	1.0.1	1	10	24	240	25	24	3,604	3,891
1.2.0	1.3.0	0.21.1	1.0.1	1	10	25	250	25	25	3,625	3,922
1.2.1	1.4.0	0.22.0	1.0.1	1	10	24	240	28	24	3,604	3,912
1.3.0	1.5.0	0.22.1	1.0.1	1	10	25	250	26	25	3,615	3,922

Memory

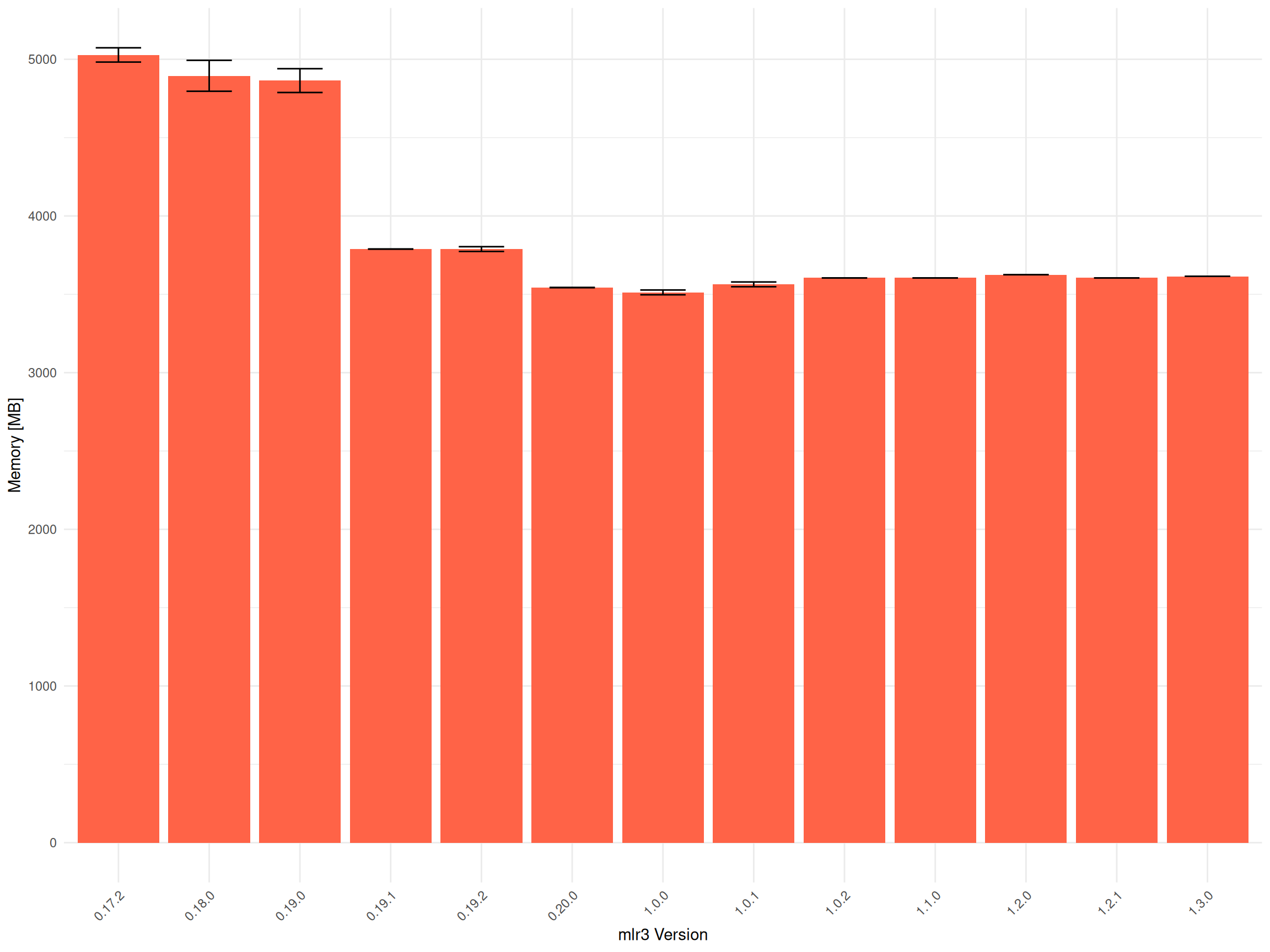

Memory usage of tune_nested() depending on the mlr3tuning version. Error bars represent the median absolute deviation of the memory usage.
